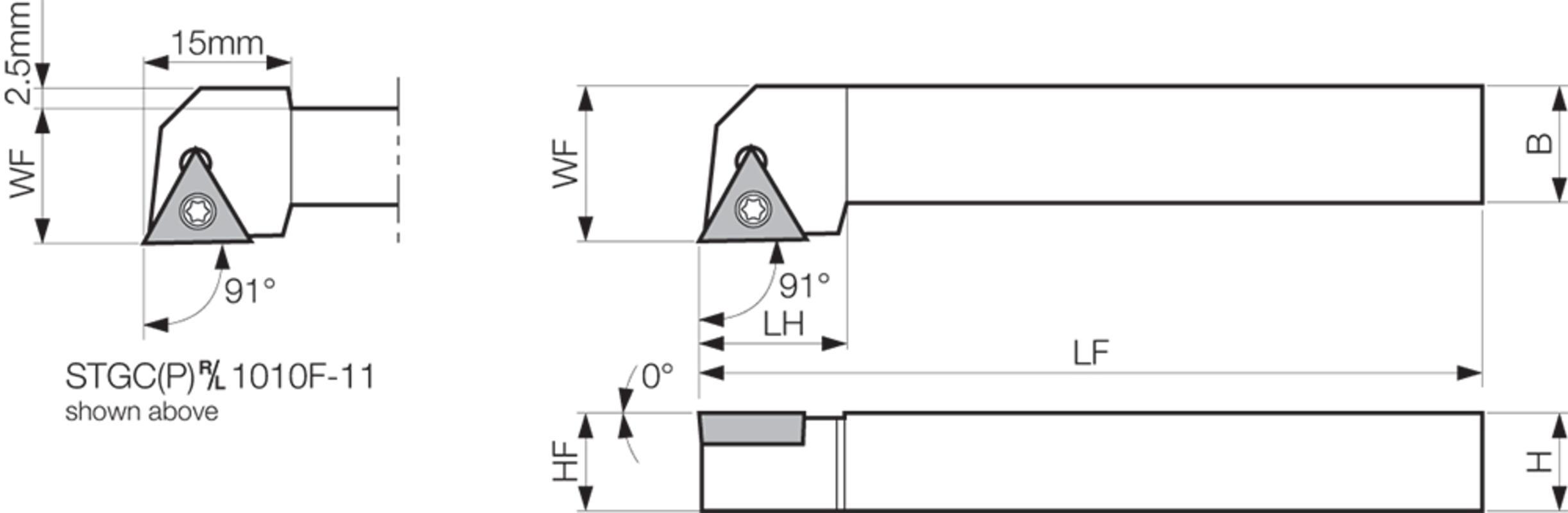

STGPR 1616H11 TURNING TOOL HOLDER
STGPR 1616H11 TURNING TOOL HOLDER
KYOCTHC08466
THC08466
118.78
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC08466
- Hand Direction: Right Hand
- Lead Angle: 90 deg
- Material: Steel
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Rake: Positive
- Shank Size: 16 mm W x 16 mm H
- Tool Holder Style: STGP
- ANSI Code: STGPR1616H11
- Back of Bar to Cutting Edge: 20 mm
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Head Length: 15 mm
- Inscribed Circle: 6.35 mm
- Insert Seat Size: 3.18 mm
- Insert Style: TPMT22…/TPGH22…/TPET22…/TPGB22…/TPMH…
- ISO Code: STGPR 1616H 11
- Manufacturer Name: KYOCERA Precision Tools
- Series: STGP
- Type: Metric
- Application
- Item Features
- Standards
Swiss and External Turning Applications
- Screw clamp insert holding design
- Simple mechanism with fewer parts for finishing to medium machining
- Without coolant
ECCN: EAR99
