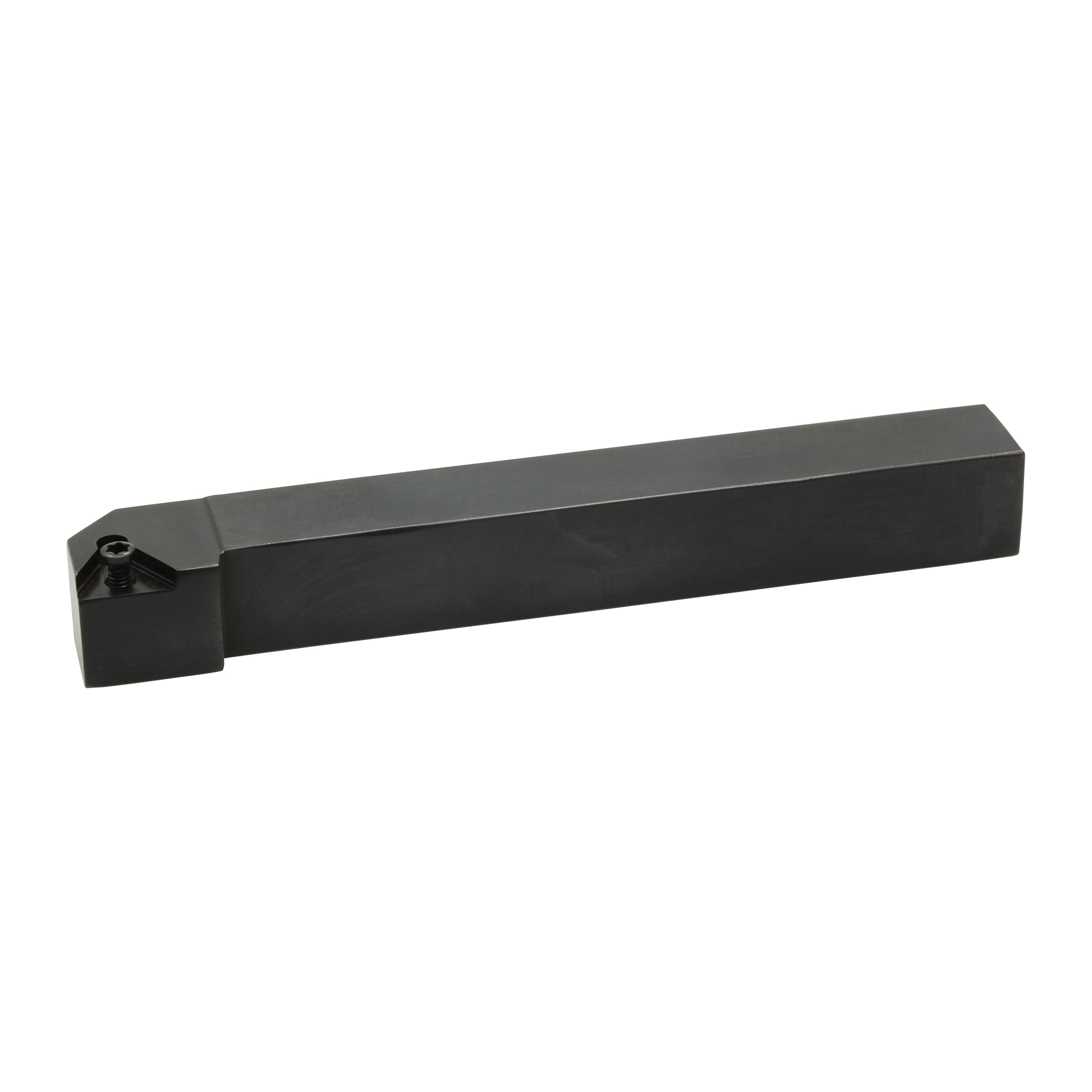

STGPR1010F11 TURNING TOOL HOLDER

STGPR1010F11 TURNING TOOL HOLDER

KYOCTHC08462 THC08462
113.70 / EA
http://schema.org/OutOfStock
STGPR1010F11 TURNING TOOL HOLDER
  • Hand Direction: Right Hand
  • Lead Angle: 90°
  • Material: Steel
  • Overall Length Decimal Inch: 80
  • Overall Length Metric: 2032
  • Rake: Positive
  • Shank Size: 10mm W x 10mm H
  • Tool Holder Style: STGP
  • ANSI Code: STGPR1010F11
  • Back of Bar to Cutting Edge: 14mm
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Head Length: 15mm
  • Inscribed Circle: 6.35mm
  • Insert Style: TPMT22…/TPGH22…/TPET22…/TPGB22…/TPMH…
  • ISO Code: STGPR1010F-11
  • Manufacturer Name: KYOCERA Precision Tools
  • Seat Size: 3.18mm
  • Series: STGP
  • Type: Metric
QTY
Add to List
  • Application
  • Item Features
  • Standards
Swiss and External Turning Applications
  • Screw clamp insert holding design
  • Simple mechanism with fewer parts for finishing to medium machining
  • Without coolant
ECCN: EAR99
