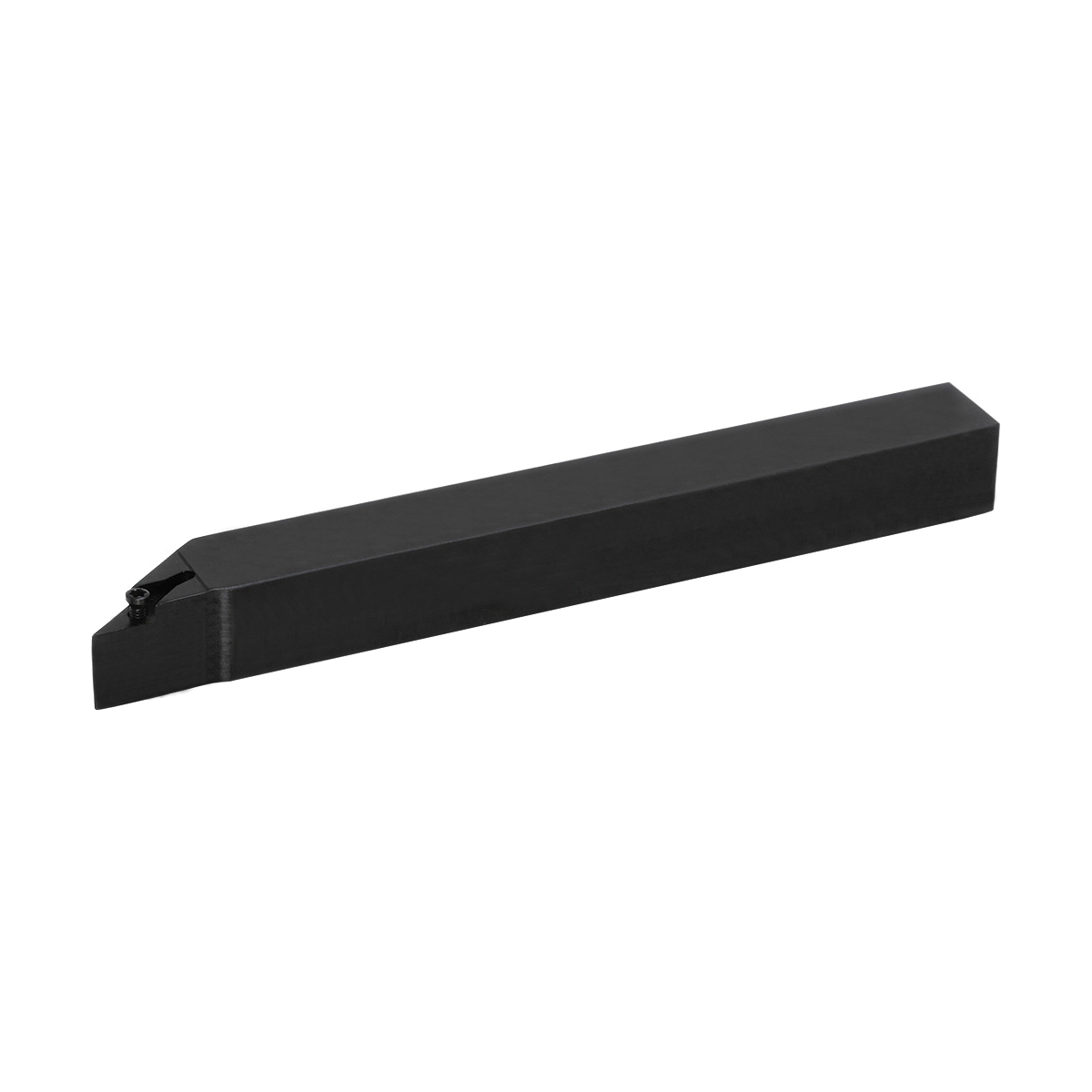

SVJBR1212JX11FF TURNING TOOL HOLDER
SVJBR1212JX11FF TURNING TOOL HOLDER
KYOCTHC07246
THC07246
116.32
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC07246
- Hand Direction: Right Hand
- Lead Angle: 93°
- Material: Steel
- Overall Length Decimal Inch: 120
- Overall Length Metric: 3048
- Rake: Positive
- Shank Size: 12mm W x 12mm H
- Tool Holder Style: SVJB
- ANSI Code: SVJBR1212JX11FF
- Back of Bar to Cutting Edge: 12mm
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Inscribed Circle: 6.35mm
- Insert Style: VBMT22…/VBGT22…/VBET22…/VBGW22…
- ISO Code: SVJBR1212JX11FF
- Manufacturer Name: KYOCERA Precision Tools
- Seat Size: 3.18mm
- Series: SVJB-FF
- Type: Metric
- Application
- Item Features
- Standards
Swiss, External Turning and Copying Applications
- Screw clamp insert holding design
- Simple mechanism with fewer parts for finishing to medium machining
- Without coolant
ECCN: EAR99
