KYOCERA PRECISION TOOLS

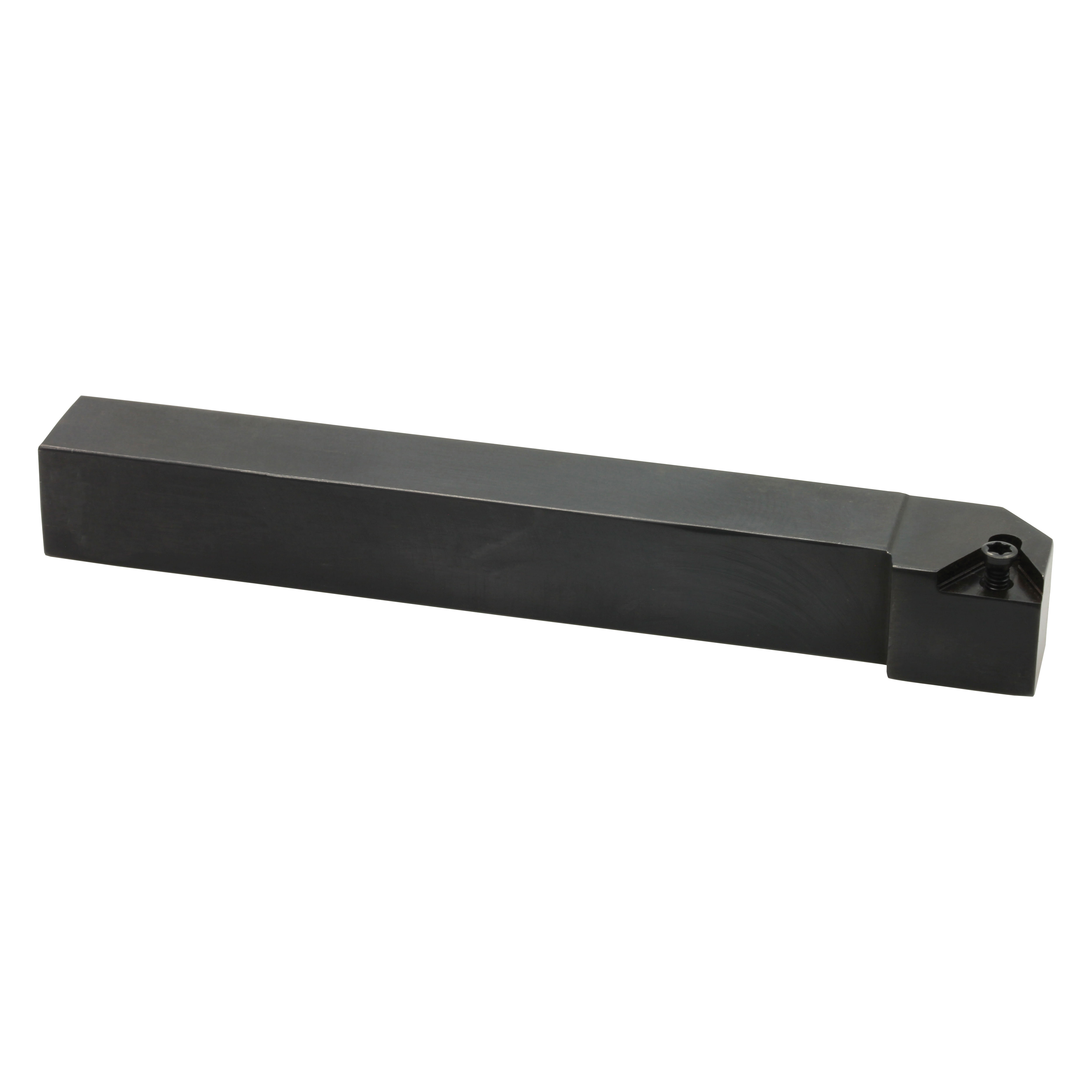

STGCL1212H11 TURNING TOOL HOLDER

STGCL1212H11 TURNING TOOL HOLDER

KYOCTHC05280 THC05280
116.32 / EA
http://schema.org/OutOfStock
STGCL1212H11 TURNING TOOL HOLDER
  • Hand Direction: Left Hand
  • Lead Angle: 90°
  • Material: Steel
  • Overall Length Decimal Inch: 100
  • Overall Length Metric: 2540
  • Rake: Positive
  • Shank Size: 12mm W x 12mm H
  • Tool Holder Style: STGC
  • ANSI Code: STGCL1212H11
  • Back of Bar to Cutting Edge: 16mm
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Head Length: 15mm
  • Inscribed Circle: 6.35mm
  • Insert Style: TCGT22…/TCET22…/TCGW22…/TCMT22…
  • ISO Code: STGCL1212H-11
  • Manufacturer Name: KYOCERA Precision Tools
  • Seat Size: 3.18mm
  • Series: SDTH
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Small Parts Machining and Swiss Applications
  • Screw clamp insert holding design
  • Simple mechanism with fewer parts for finishing to medium machining
  • Without coolant-through
ECCN: EAR99
