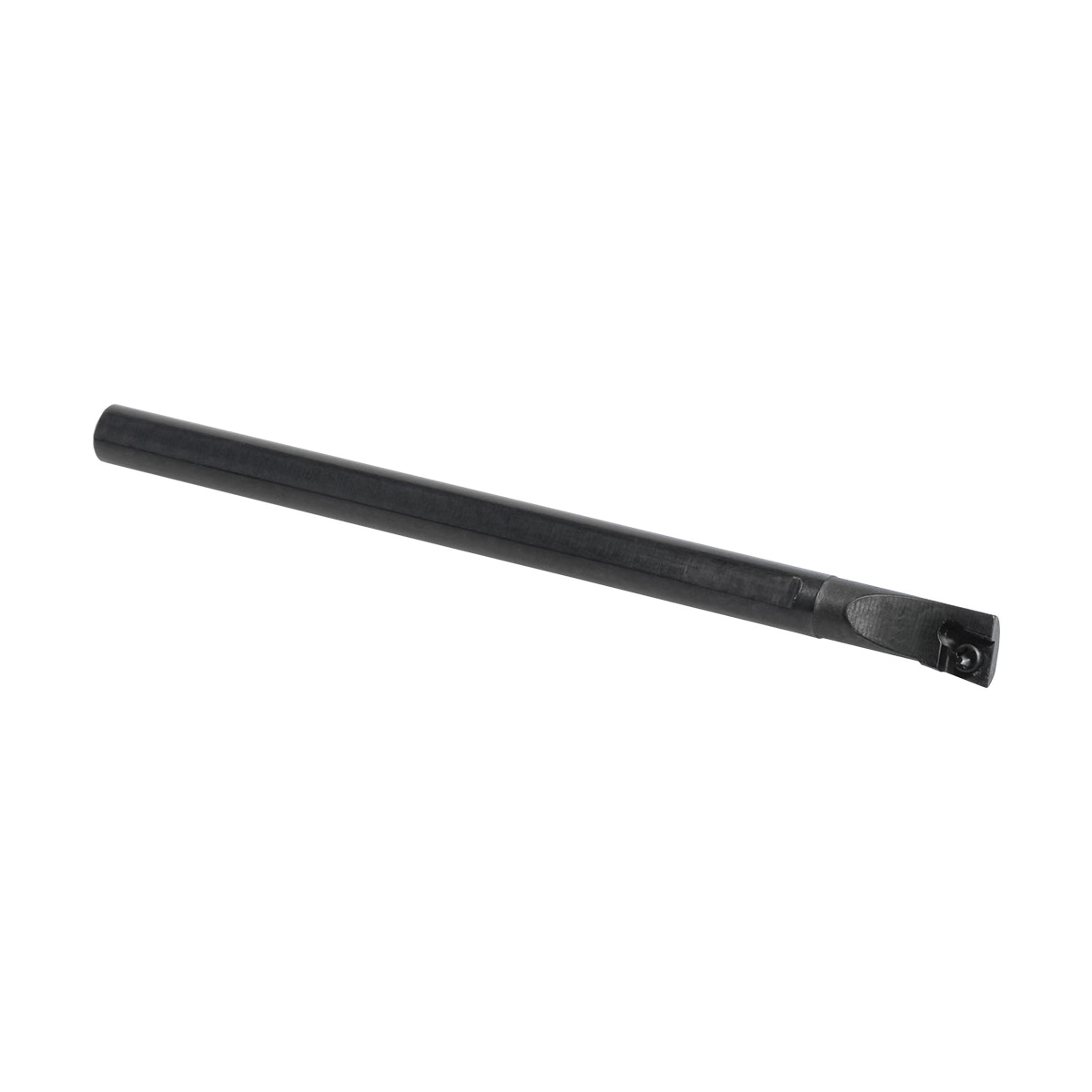

S05KSCLCL2 BORING BAR
S05KSCLCL2 BORING BAR
KYOCTHC89264
THC89264
122.24
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC89264
- Inscribed Circle: 1/4in
- Insert Shape: 80° Diamond
- Insert Style: CCGT215…/CCMT215…/CCET215…/CCGW215…/CCMW215…
- Insert Thickness: 0.0938in
- Material: Steel
- Maximum Bore Depth: 5/8in
- Minimum Bore Diameter: 0.3937in
- Overall Length Decimal Inch: 5
- Overall Length Fractional Inch: 5
- Overall Length Metric: 127
- Shank Diameter Decimal Inch: 0.312
- Shank Diameter Fractional Inch: 5/16
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Multi-Use Positive Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: GPBB
- Toolholder Type: S...SCLC
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- 0 (axial), -12 (radial) rake angle general purpose Boring Bar
ECCN: EAR99
