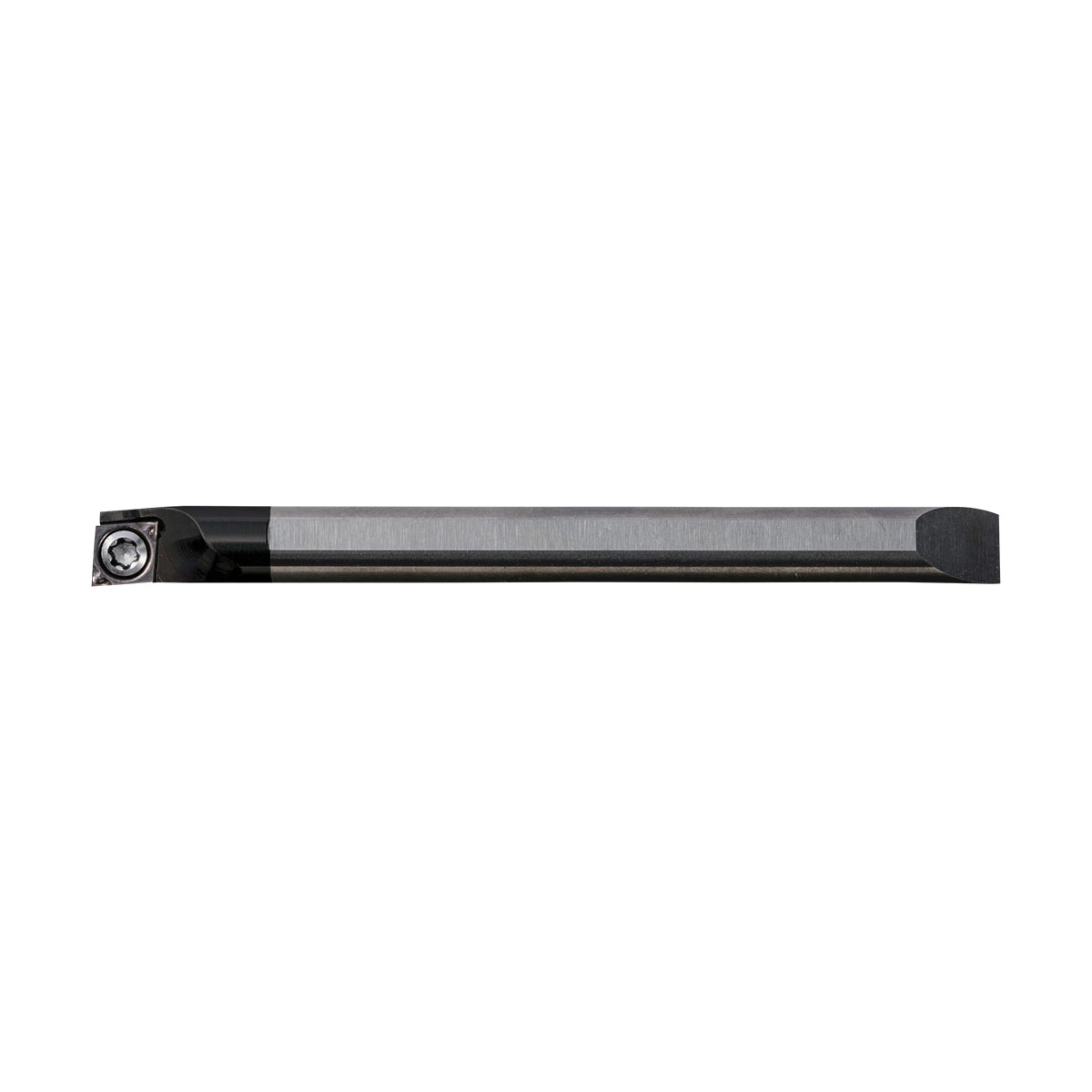

S045XSCLCR03050EZP BORING BAR
S045XSCLCR03050EZP BORING BAR
KYOCTHC14601
THC14601
108.50
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14601
- Inscribed Circle: 3.5mm
- Insert Shape: 80° Diamond
- Insert Style: CCGT1109…/CCET1109…/CCMW1109…
- Insert Thickness: 1.4mm
- Material: Steel
- Minimum Bore Diameter: 5mm
- Overall Length Decimal Inch: 42.4
- Overall Length Metric: 1076.96
- Shank Diameter Decimal Inch: 0.177
- Shank Diameter Metric: 4.5
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Positive Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: EZB
- Toolholder Type: S...SCLC-EZP
- Application
- Item Features
- Standards
Boring Applications
- Indexable small diameter Boring Bars
- High precision solid bars with the convenience of indexable inserts for reduced machining costs
- The EZ adjust structure features much lower mounting times compared to conventional Boring Bars
- The EZ adjust structure features higher repeatability and accuracy compared with conventional Boring Bars
- 2 (axial), -15 (radial) rake angle EZ bar plus Boring Bar
ECCN: EAR99
