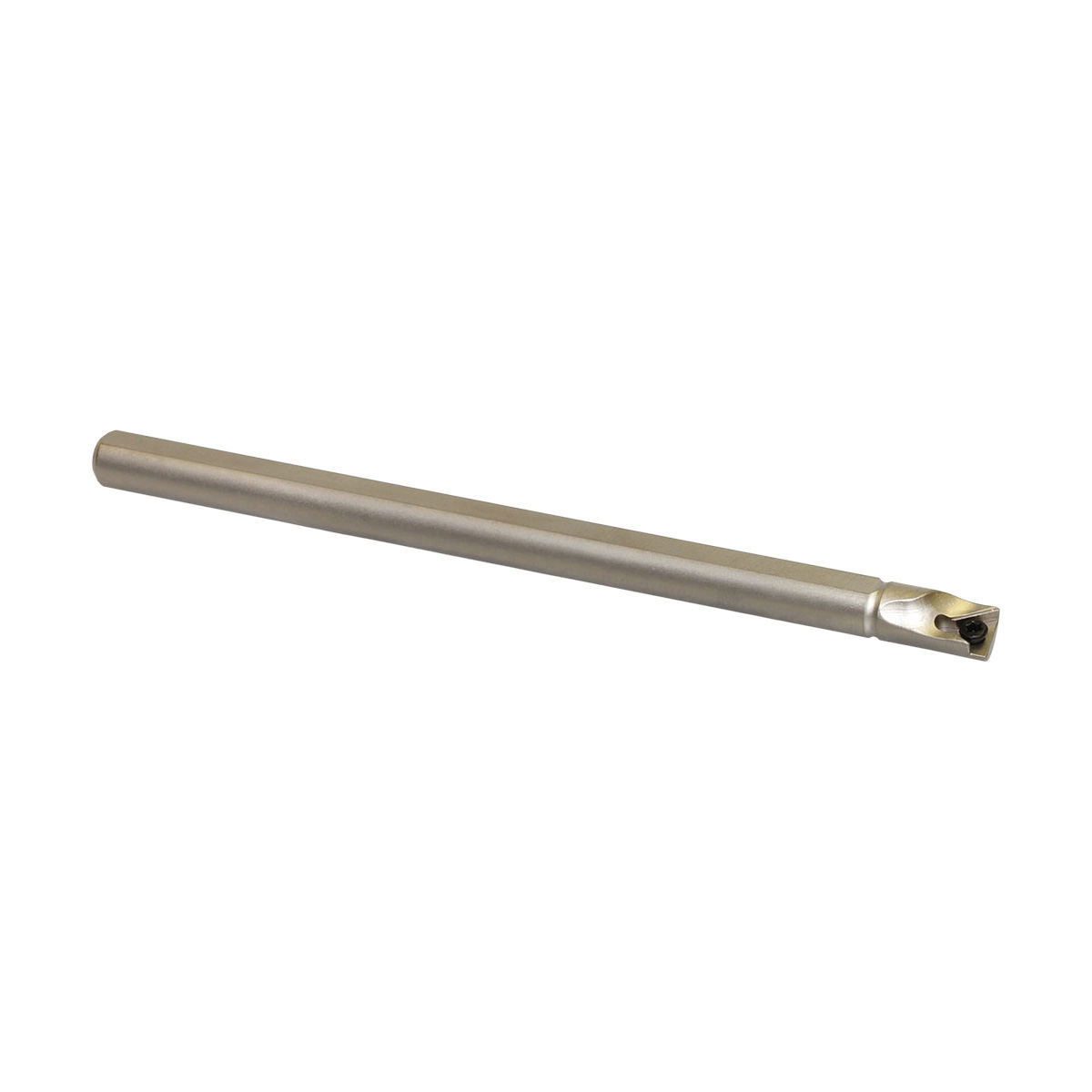

S04HSTLBL12AE BORING BAR
S04HSTLBL12AE BORING BAR
KYOCTHC14073
THC14073
170.83
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14073
- Inscribed Circle: 0.1563in
- Insert Shape: 60° Triangular
- Insert Style: TBGT121…/TBMT121…/TBGW121…/TBMT121…
- Insert Thickness: 1/16in
- Material: Steel
- Maximum Bore Depth: 0.4724in
- Minimum Bore Diameter: 0.312in
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Excellent Multi-Use Positive Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: DYNB
- Toolholder Type: S...STLB-AE
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- 0 (axial), -12 (radial) rake angle dynamic bar Boring Bar
ECCN: EAR99
