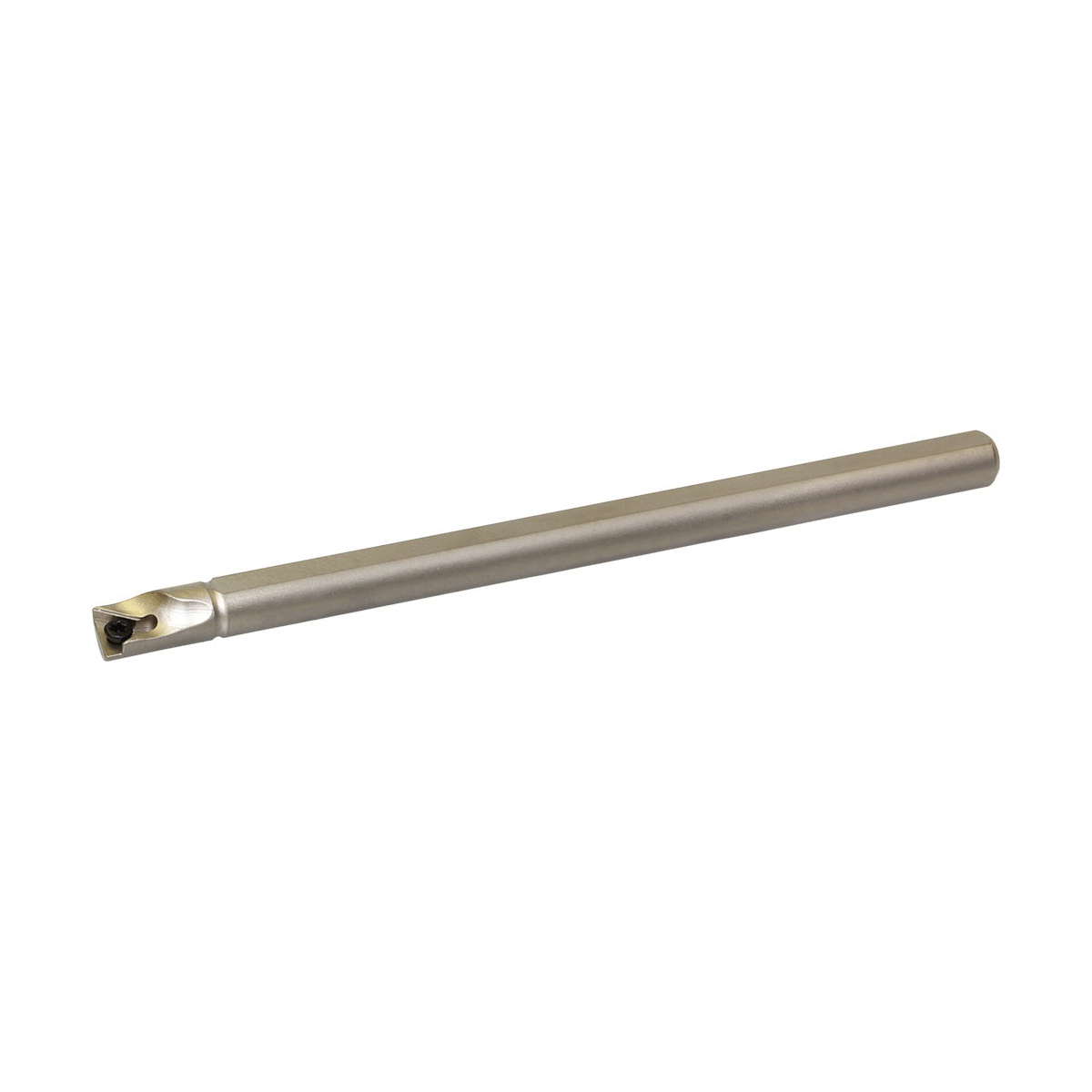

S06HSTLBR0608AE BORING BAR
S06HSTLBR0608AE BORING BAR
KYOCTHC11812
THC11812
140.46
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC11812
- Inscribed Circle: 3.97mm
- Insert Shape: 60° Triangle
- Insert Style: TBGT121.../TBMT121.../TBGW121.../TBMT121...
- Insert Thickness: 1.59mm
- Material: Steel
- Maximum Bore Depth: 12mm
- Minimum Bore Diameter: 8mm
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Shank Diameter Decimal Inch: 0.236
- Shank Diameter Metric: 6
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Metric Multi-Use Positive Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: Dynamic Bar
- Toolholder Type: S...STLB-AE
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
ECCN: EAR99
