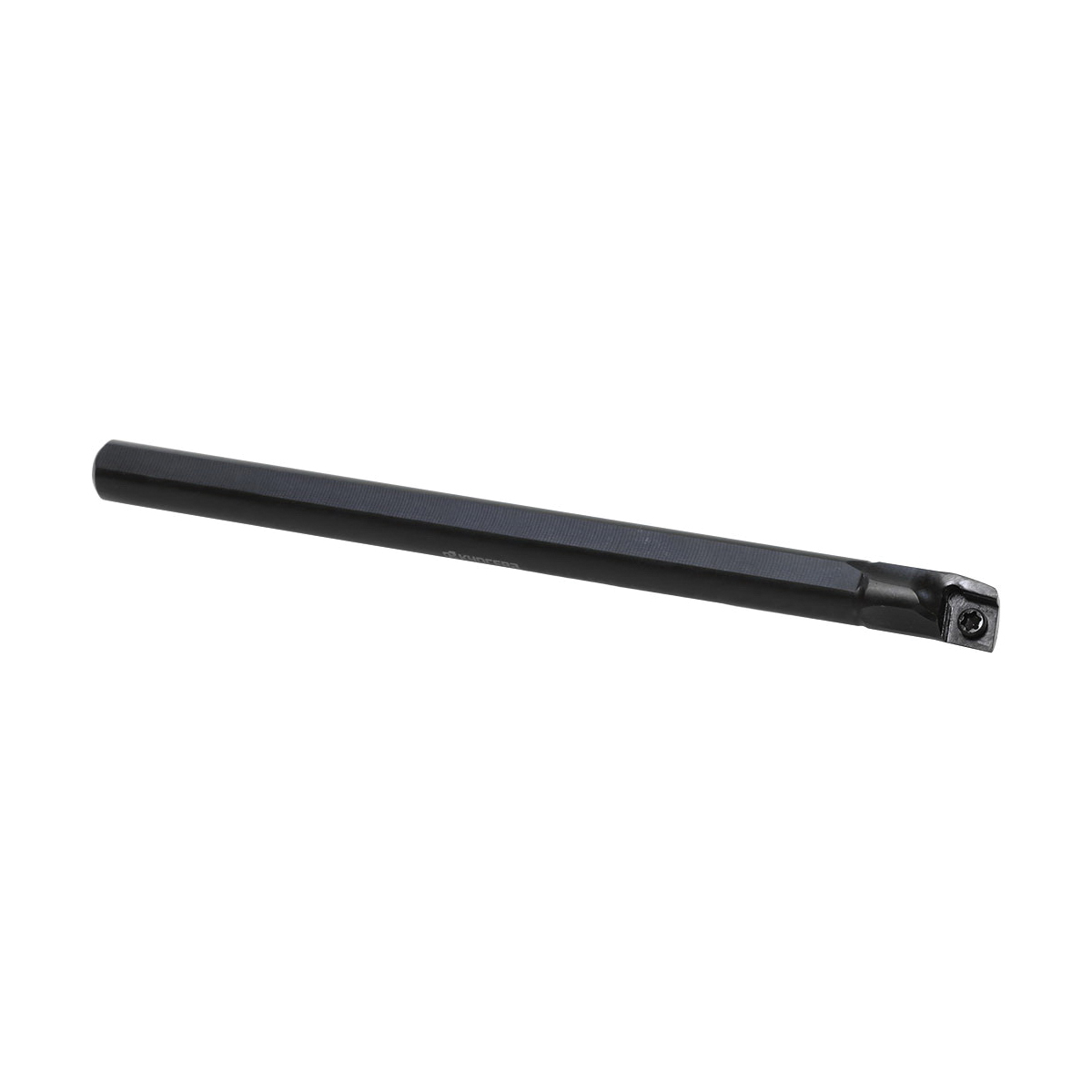

S10LSCLPL0812A BORING BAR
S10LSCLPL0812A BORING BAR
KYOCTHC11673
THC11673
129.30
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC11673
- Inscribed Circle: 7.94mm
- Insert Shape: 80° Diamond
- Insert Style: CPMT2515.../CPMH2515.../CPMB2515.../CPGB2515...
- Insert Thickness: 2.38mm
- Material: Steel
- Maximum Bore Depth: 20mm
- Minimum Bore Diameter: 12mm
- Overall Length Decimal Inch: 140
- Overall Length Metric: 3556
- Shank Diameter Decimal Inch: 0.394
- Shank Diameter Metric: 10
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Metric Multi-Use Positive Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: Dynamic Bar
- Toolholder Type: S...SCLP-A
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
ECCN: EAR99
