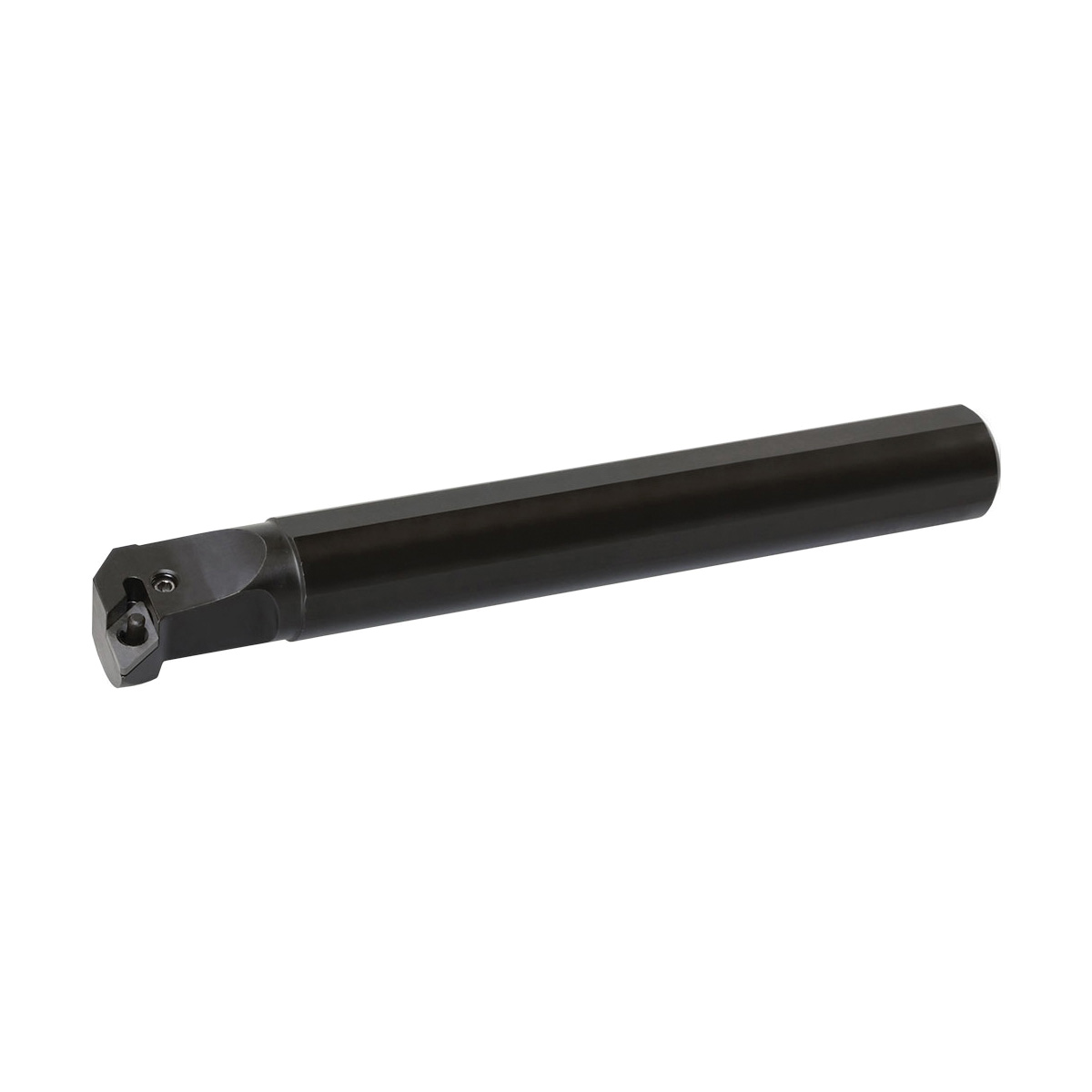

S25RPDUNR1132 BORING BAR

S25RPDUNR1132 BORING BAR

KYOCTHC07980 THC07980
351.42 / EA
http://schema.org/OutOfStock
S25RPDUNR1132 BORING BAR
  • Inscribed Circle: 9.53mm
  • Insert Shape: 55° Diamond
  • Insert Style: DNMG33…/DNGG33…
  • Insert Thickness: 4.76mm
  • Material: Steel
  • Maximum Bore Depth: 40mm
  • Minimum Bore Diameter: 32mm
  • Overall Length Decimal Inch: 200
  • Overall Length Metric: 5080
  • Shank Diameter Decimal Inch: 0.984
  • Shank Diameter Metric: 25
  • Shank Type: Round
  • Through Coolant (Yes/No): No
  • Type: Negative Rake
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: GPBB
  • Toolholder Type: S...PDUN11
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying Applications
  • -15 (radial) rake angle general purpose Boring Bar
ECCN: EAR99
