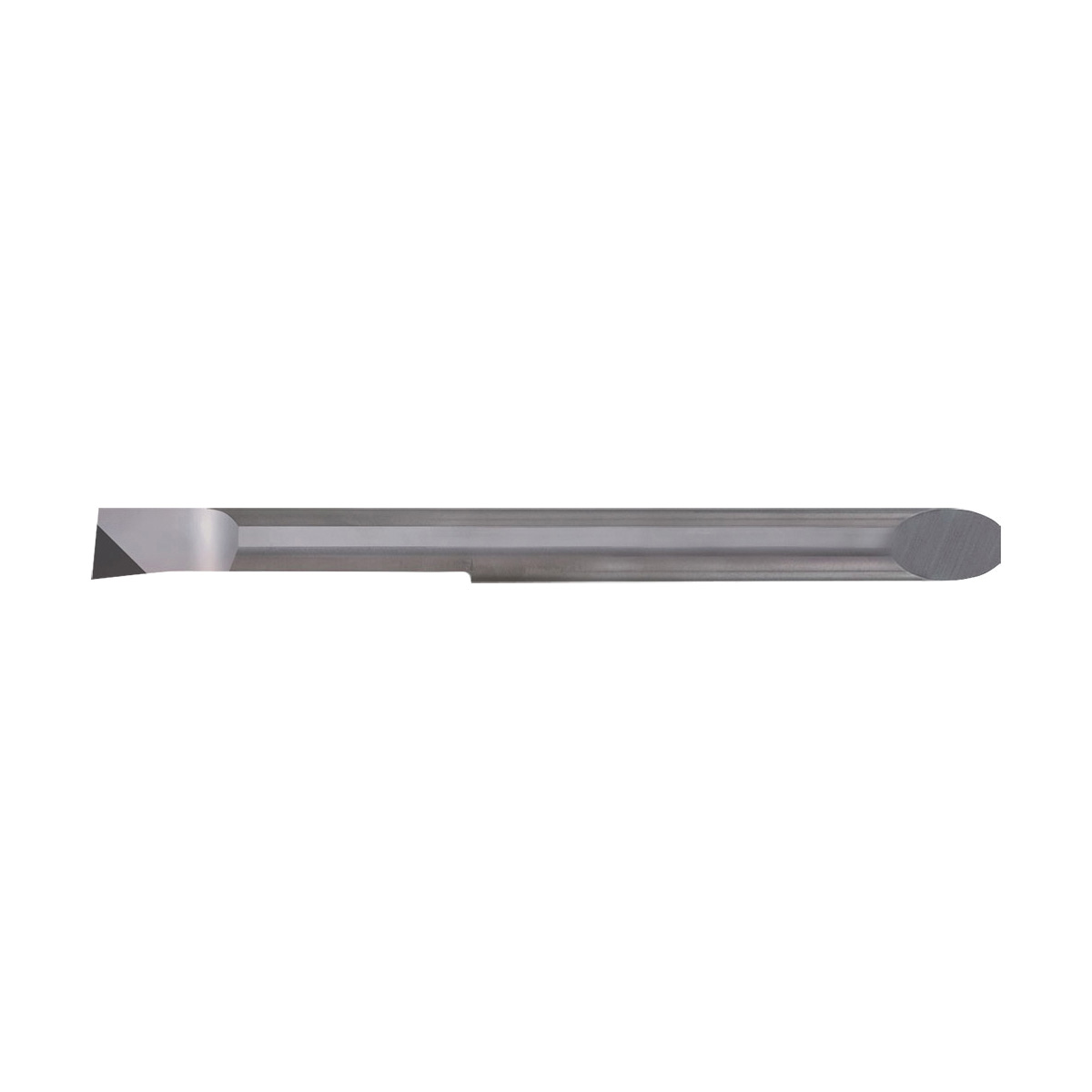

EZBR040040003NBKBN05M MICRO BORING BAR

EZBR040040003NBKBN05M MICRO BORING BAR

KYOCTBN30404 TBN30404
100.85 / EA
http://schema.org/OutOfStock
EZBR040040003NBKBN05M MICRO BORING BAR
  • Insert Thickness: 3.6mm
  • Material: CBN
  • Maximum Bore Depth: 20mm
  • Minimum Bore Diameter: 4mm
  • Overall Length Decimal Inch: 48.8
  • Overall Length Metric: 1239.52
  • Shank Diameter Decimal Inch: 0.157
  • Shank Diameter Metric: 4
  • Hand Direction: Right Hand
  • Surface Treatment: PVD-MEGACOAT
  • Series: EZB
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Hardened Materials Boring Applications
  • Adjustable overhang length (EZ adjust structure)
  • Minimized deviation of the cutting diameter
  • Various EZ bar sizes and styles for a wide range of small internal machining applications
  • Without chipbreaker for non-ferrous machining applications
  • Without hole
