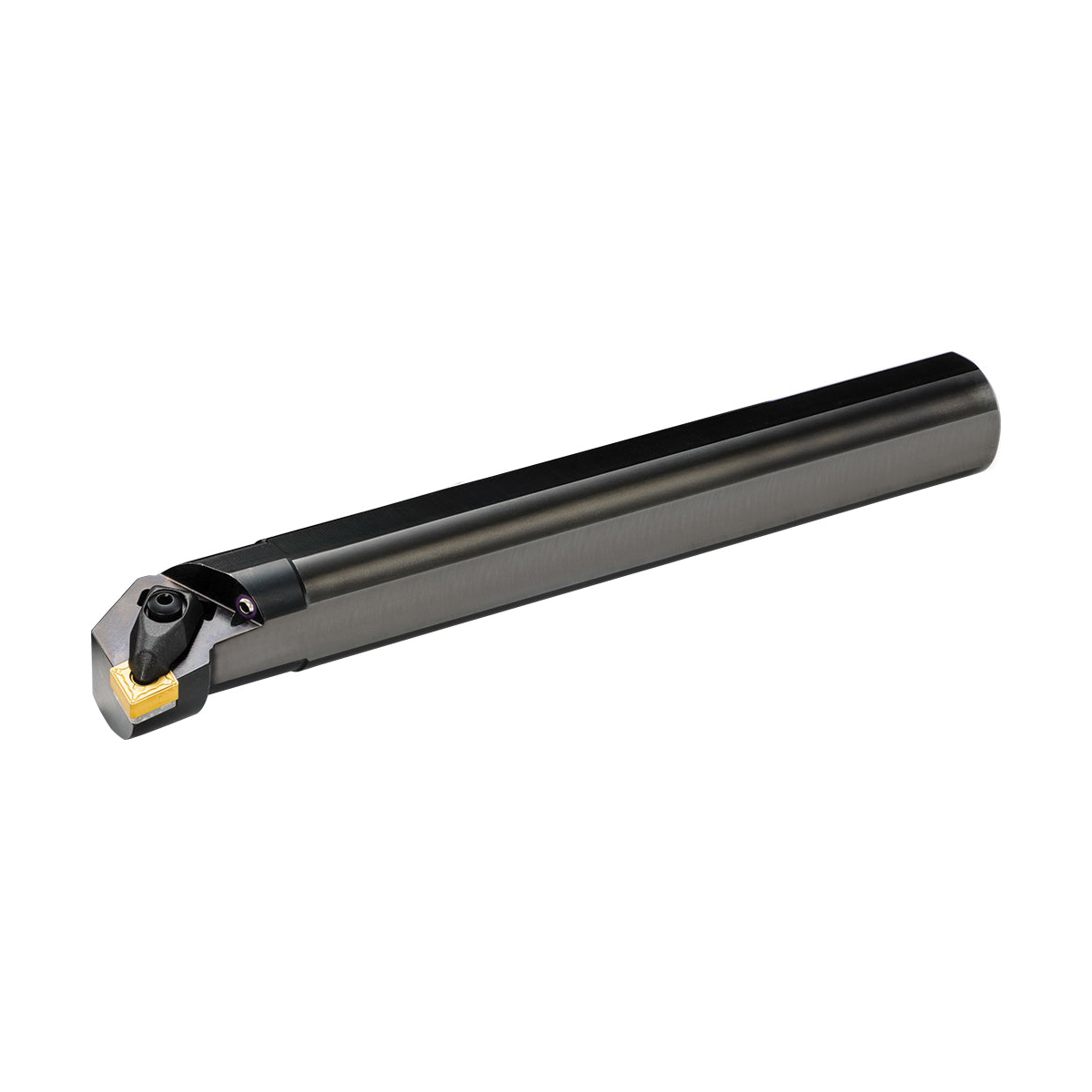

A16TDCLNR4 BORING BAR

A16TDCLNR4 BORING BAR

KYOCOTM87663 OTM87663
249.48 / EA
http://schema.org/OutOfStock
A16TDCLNR4 BORING BAR
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Right Hand
  • Inscribed Circle: 1/2in
  • Insert Shape: 80° Diamond
  • Insert Style: CNMG43.../CNMM43.../CNGG43.../CNMA43.../CNGA43...
  • Insert Thickness: 3/16in
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Steel
  • Maximum Bore Depth: 1.5748in
  • Minimum Bore Diameter: 1-1/4in
  • Overall Length: 12in
  • Series: Double Clamp
  • Shank Diameter: 1in
  • Shank Type: Round
  • Through Coolant (Yes/No): Yes
  • Toolholder Type: A...DCLN
  • Type: Imperial Multi-Use Negative Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Firmly clamps the insert in two directions with a single action maintaining good contact between the shim and the insert even during high feed rates
  • Adjustable coolant discharge for various applications and insert types
  • Improved insert position accuracy with greater insert life
  • Improved machining stability
  • Increased clamping rigidity
ECCN: EAR99
