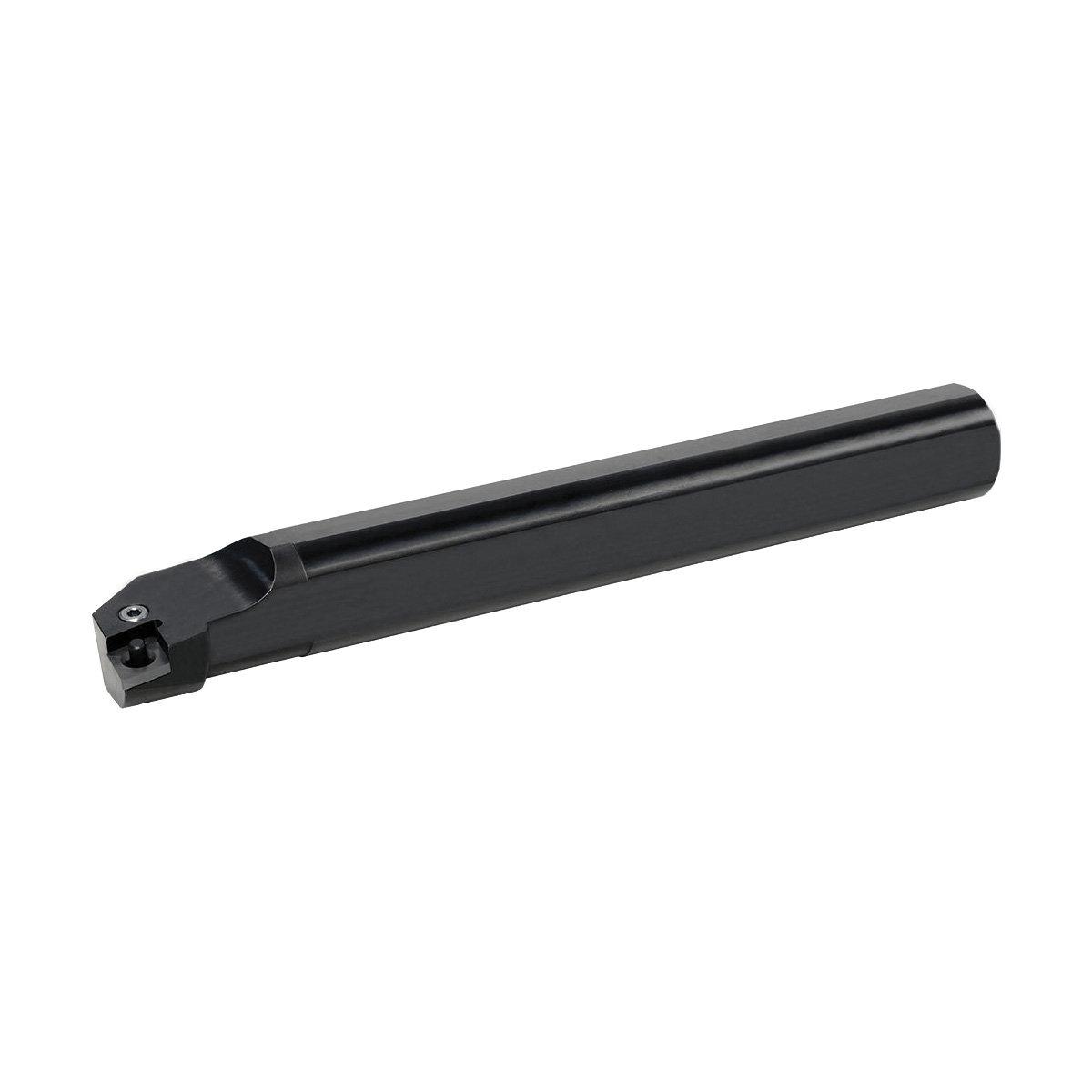

S20SPCLNR4 BORING BAR
S20SPCLNR4 BORING BAR
KYOC8802469
8802469
251.65
/ EA
http://schema.org/OutOfStock
/Product/KYOC8802469
- Inscribed Circle: 1/2in
- Insert Shape: 80° Diamond
- Insert Style: CNMG43…/CNMM43…/CNGG43…/CNMA43…/CNGA43…
- Insert Thickness: 3/16in
- Material: Steel
- Maximum Bore Depth: 2in
- Minimum Bore Diameter: 1.55in
- Overall Length Decimal Inch: 10
- Overall Length Fractional Inch: 10
- Overall Length Metric: 254
- Shank Diameter Decimal Inch: 1.25
- Shank Diameter Fractional Inch: 1-1/4
- Shank Type: Round
- Through Coolant (Yes/No): No
- Type: Multi-Use Negative Rake
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: GPBB
- Toolholder Type: S...PCLN
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- 6 (axial), -10 (radial) rake angle general purpose Boring Bar
ECCN: EAR99
