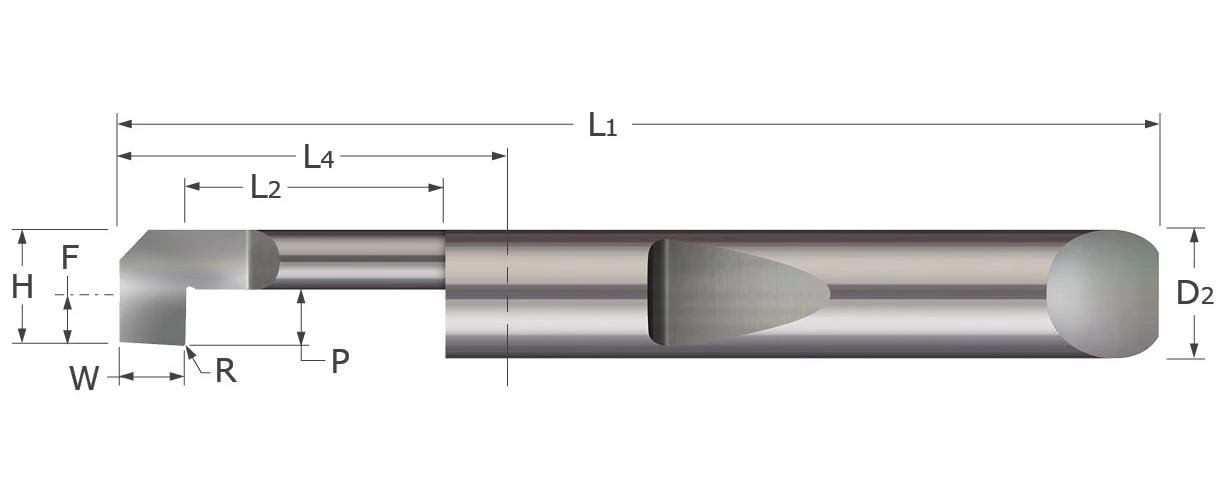

QC CARBIDE PROFILING/BORING TOOL
QC CARBIDE PROFILING/BORING TOOL
MICTQPR-3601250
QPR-3601250
83.55
/ EA
http://schema.org/OutOfStock
/Product/MICTQPR-3601250
- Groove Width: 0.109 in
- Hand Direction: Right Hand
- Material: Solid Carbide
- Maximum Hole Depth: 1.25 in
- Minimum Hole Diameter: 0.382 in
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Shank Diameter Decimal Inch: 0.375
- Shank Diameter Fractional Inch: 3/8
- Shank Type: Cylindrical
- Type: Quick Change
- Country of Origin: US
- Gage length Decimal Inch: 0.13
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Micro 100
- Surface Treatment: UNCOATED
- Application
- Item Features
Designed for radial profiling , choice for fine finishing
- Designed for radial profiling
- Excellent choice for fine finishing
- Can be used in thread relief applications
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
