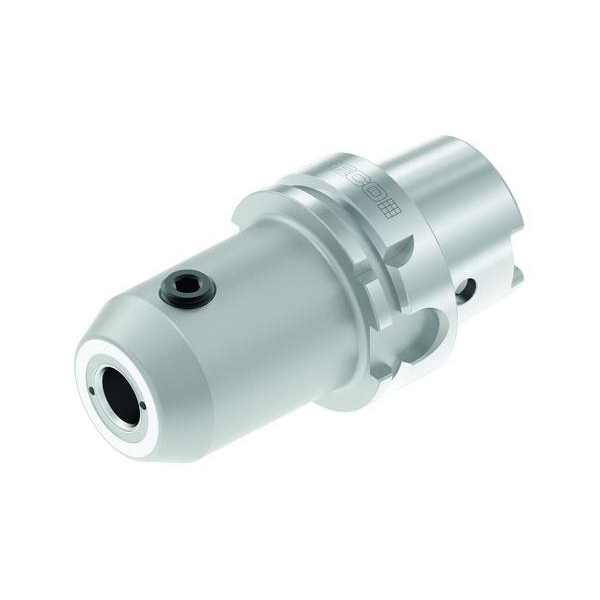

HSKA100-EM0.750-4.000-L1 SIDELOCK HOLDER

HSKA100-EM0.750-4.000-L1 SIDELOCK HOLDER

SEC03301742 03301742
306.43 / EA
http://schema.org/OutOfStock
HSKA100-EM0.750-4.000-L1 SIDELOCK HOLDER
  • ANSI Code: HSKA100-EM0.750-4.000-L1
  • Country of Origin: SE
  • Manufacturer Name: Seco Tools
  • Overall Diameter: 44.5 mm, 44.5mm
  • Overall Length Decimal Inch: 151.6
  • Overall Length Metric: 3850.64
  • Series: EM 584
  • Shank Connection Size: 3/4 in, 3/4in
  • Shank Type: Taper/Weldon
  • System Size Machine Side: HSKA100
  • Taper Size: HSKA100
  • Type: 1-Hole
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Item Features
  • Standards
  • Direct run-out 3 um maximum
  • Weldon DCBN-DCBX 20, 25, 32 and 40 mm dia with ground face (Seco-Weldon compatible)
  • With (2) coolant channels for front lubrication
DIN 1835 Form B|DIN 6535 Form HB
