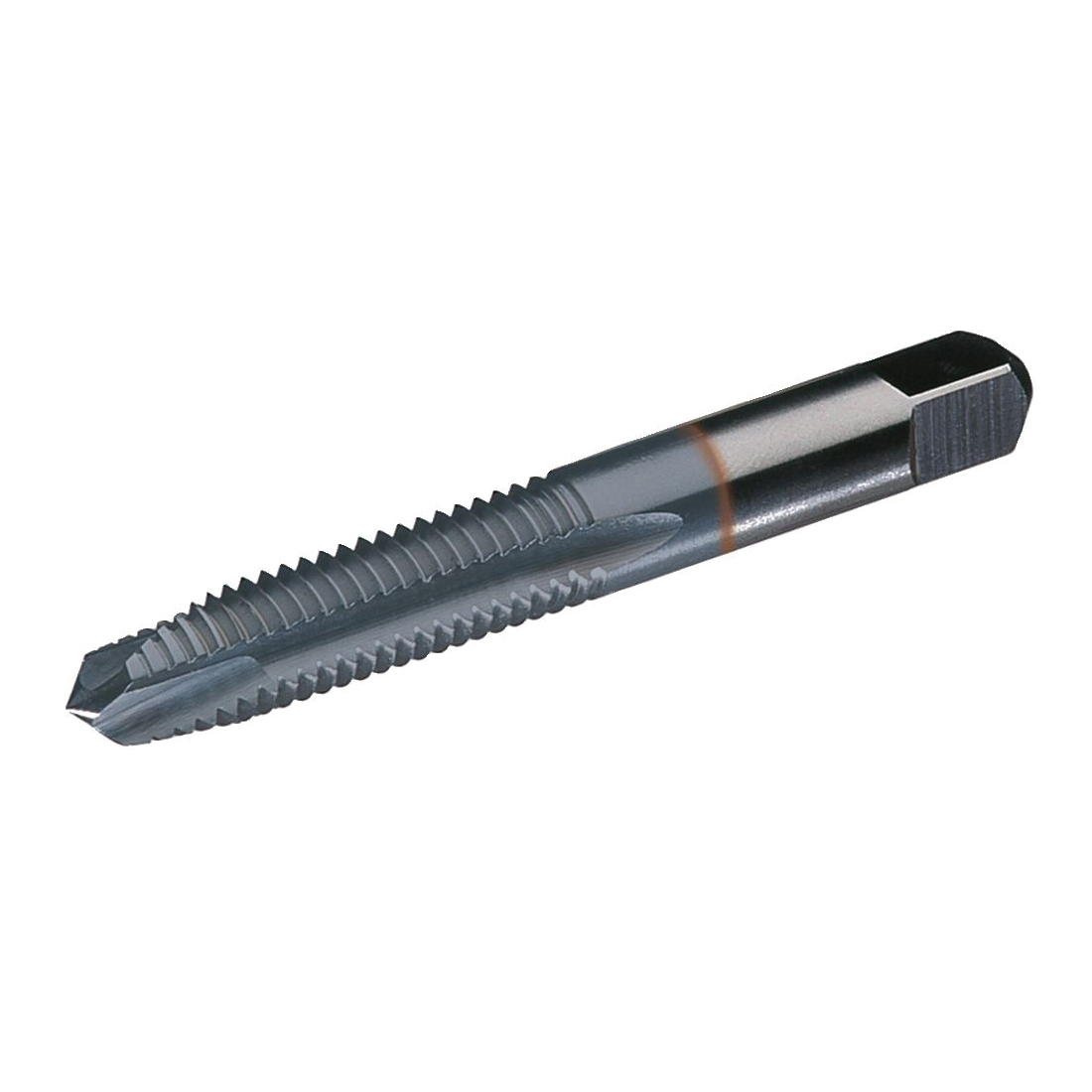

4-40 H2 2FL SPL PT PLUG GUN TAP TiCN CTD
4-40 H2 2FL SPL PT PLUG GUN TAP TiCN CTD
GRE2746988
2746988
22.18
/ EA
http://schema.org/OutOfStock
/Product/GRE2746988
- Applicable Materials: Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel
- Chamfer: Plug
- Class of Fit: 3B
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 2
- Overall Length Decimal Inch: 1.88
- Overall Length Metric: 47.752
- Series: GUN™ 5301TC
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Surface Treatment: TiCN Coated
- Thread Length Decimal Inch: 0.56
- Thread Limit: H2
- Thread Size: #4-40
- Thread Standard: UNC
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
- Application
- Item Features
- Standards
For through hole in general machining applications
- Shoots chips ahead of the cutting action to reduce overloading and clogging in flutes, protecting the workpiece
- Extended life in ferrous materials
ANSI Specified|USCTI Standards
