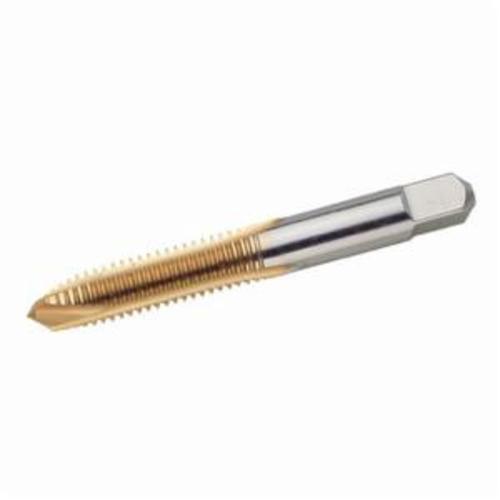

5301T 1/2-13 GH5 3FL GUN TIN
5301T 1/2-13 GH5 3FL GUN TIN
GRE2709672
2709672
42.20
/ EA
http://schema.org/OutOfStock
/Product/GRE2709672
- Applicable Materials: Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel
- Chamfer: Plug
- Class of Fit: 2B
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 3
- Overall Length Decimal Inch: 3.38
- Overall Length Metric: 85.852
- Series: GUN™ 2301
- Shank Diameter Decimal Inch: 0.367
- Surface Treatment: TiN Coated
- Thread Length Decimal Inch: 1.656
- Thread Length Fractional Inch: 1-21/32
- Thread Limit: H5
- Thread Size: 1/2-13
- Thread Standard: UNC
- Type: High Performance
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
- Application
- Item Features
- Standards
For through hole in general machining applications
- Shoots chips ahead of the cutting action to reduce overloading and clogging in flutes, protecting the workpiece
- Extended life in ferrous materials
ANSI Specified|USCTI 302
