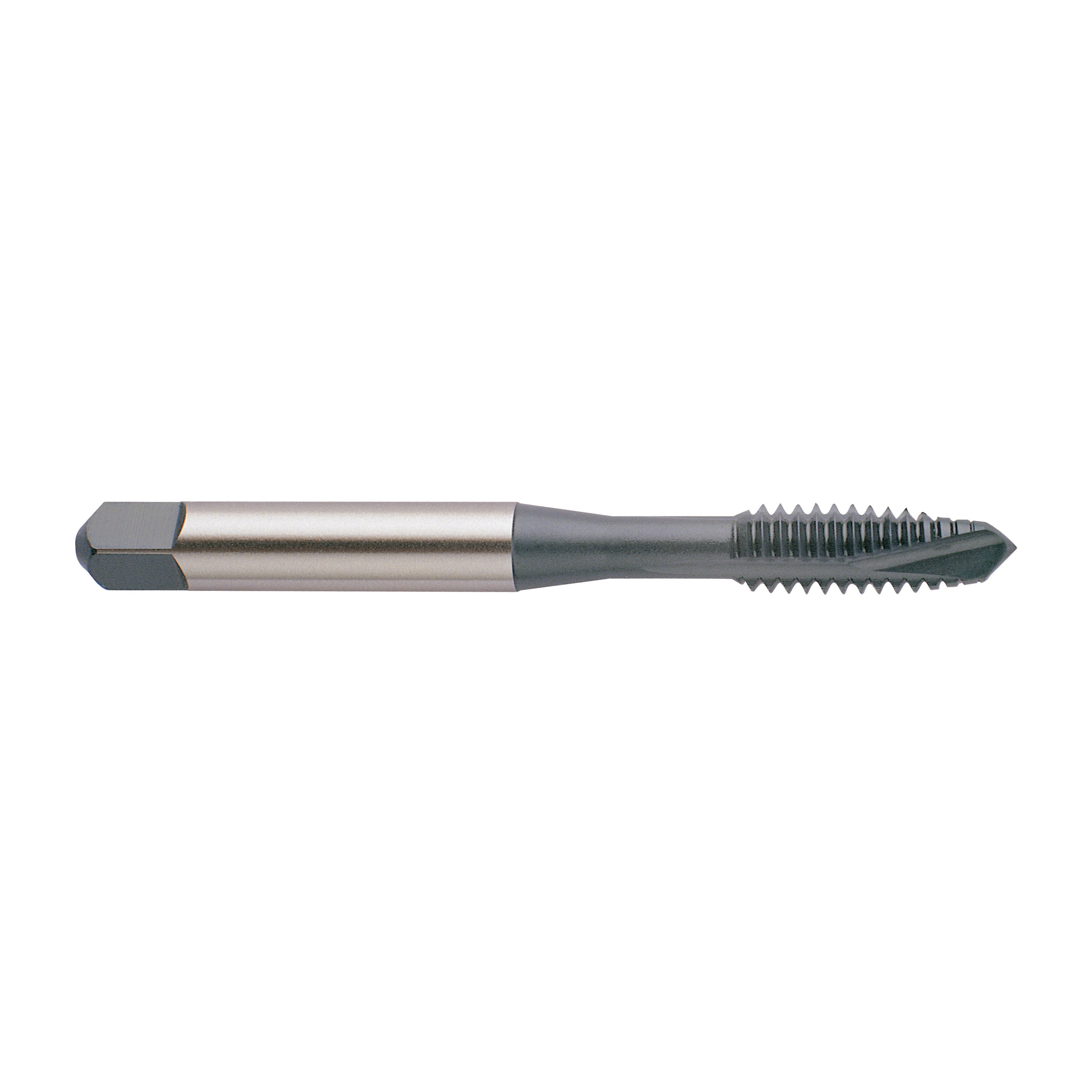

M3x0.5 D3 49.2L TAP
M3x0.5 D3 49.2L TAP
YGTCTQ808203
TQ808203
29.20
/ EA
http://schema.org/OutOfStock
/Product/YGTCTQ808203
- Chamfer: 2P-3P Modified Bottoming
- Class of Fit: 6H
- Material: P-HSS
- Number of Flutes: 3
- Overall Length Decimal Inch: 49.28
- Overall Length Metric: 1251.712
- Series: TQ808 Series
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Shank Diameter Metric: 3.58
- Surface Treatment: Steam Oxide
- Thread Length Decimal Inch: 0.197
- Thread Length Metric: 5
- Thread Limit: D3
- Thread Size: 2.5453mm, M3x0.5
- Thread Standard: M
- Through Coolant (Yes/No): No
- Type: High Performance Square Shank
- Country of Origin: KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- System of Measurement: Metric
- Application
- Item Features
- Standards
Blind Hole Applications
- Steam tempered is a Fe3O4-oxyd coating which reduces friction between the tool and workpiece, also preventing cold welding
- High alloyed steels >1200 N/sq-mm Rm
