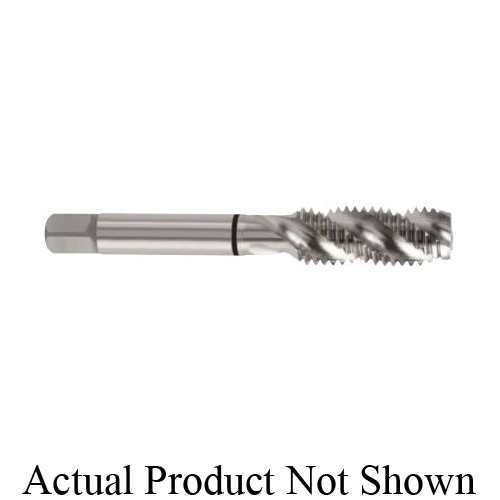

1/4-20 H5 3FL SPIRAL FLUTE TICN BTM TAP
1/4-20 H5 3FL SPIRAL FLUTE TICN BTM TAP
YGTCT2405C
T2405C
19.83
/ EA
http://schema.org/OutOfStock
/Product/YGTCT2405C
- Chamfer: Semi-Bottoming
- Hand Direction: Right Hand
- Material: HSS-EX
- Number of Flutes: 3
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Series: T2-C
- Shank Diameter Decimal Inch: 0.255
- Surface Treatment: TiCN Coated
- Thread Length Decimal Inch: 0.433
- Thread Limit: H5
- Thread Size: 1/4-20
- Thread Standard: UNC
- Type: Combo Multi-Purpose Single End
- Applicable Materials: Steel and Stainless Steel
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
- Application
- Item Features
- Standards
For multi-purpose
- Reduces tap breakage, ensures accurate thread depth
- Eliminates loose threads due to tap overfeeding
- Improves thread quality and chip evacuation
- Eliminates "bird nests" around tap shank
ANSI Specified
