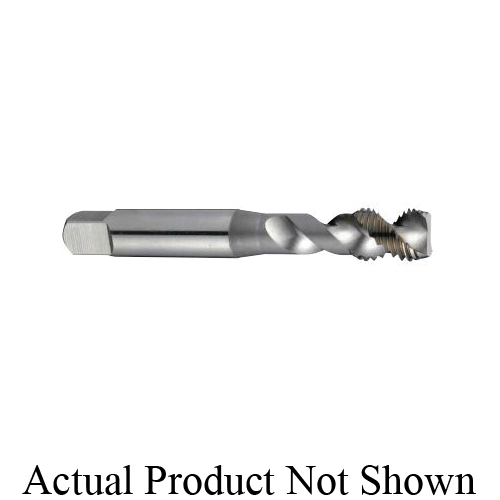

M10x1.5, D6 2FL METRIC
M10x1.5, D6 2FL METRIC
YGTCF3426
F3426
84.87
/ EA
http://schema.org/OutOfStock
/Product/YGTCF3426
- Chamfer: Modified Bottoming
- Hand Direction: Right Hand
- Material: HSS-E-V3
- Number of Flutes: 2
- Overall Length Decimal Inch: 3.937
- Overall Length Metric: 100
- Series: F3
- Shank Diameter Decimal Inch: 0.381
- Surface Treatment: Hardslick Coated
- Thread Length Decimal Inch: 0.512
- Thread Limit: D6
- Thread Size: M10x1.5
- Thread Standard: UNF
- Applicable Materials: Aluminum Alloys or Die Cast Aluminum
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Single or Double End: Single
- System of Measurement: Metric
- Standards
ANSI Specified|DIN Rated
