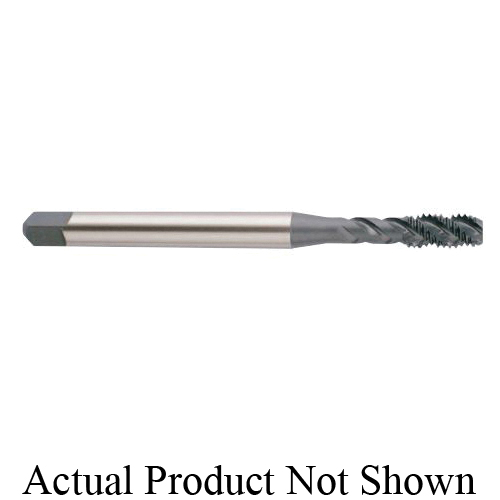

M10 - 1.5, D6 3 FLUTED METRIC
M10 - 1.5, D6 3 FLUTED METRIC
YGTCE8426
E8426
36.32
/ EA
http://schema.org/OutOfStock
/Product/YGTCE8426
- Chamfer: Modified Bottoming
- Hand Direction: Right Hand
- Material: HSS-E-V3
- Number of Flutes: 3
- Overall Length Decimal Inch: 3.937
- Overall Length Metric: 100
- Series: E8
- Shank Diameter Decimal Inch: 0.381
- Surface Treatment: TiCN Coated
- Thread Length Decimal Inch: 0.51
- Thread Limit: D6
- Thread Size: M10x1.5
- Thread Standard: UNF
- Applicable Materials: Stainless Steel
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Single or Double End: Single
- System of Measurement: Metric
- Application
- Standards
For general purpose applications
ANSI Specified|DIN Rated
