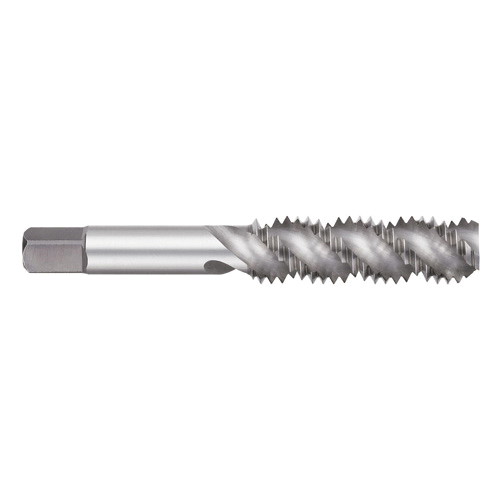

763 M10x1.5 D6 3FL SEMI BTM TAP
763 M10x1.5 D6 3FL SEMI BTM TAP
TIUSTT76363
TT76363
49.70
/ EA
http://schema.org/OutOfStock
/Product/TIUSTT76363
- Chamfer: Semi-Bottoming
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 3
- Overall Length Decimal Inch: 2.9375
- Overall Length Fractional Inch: 2-15/16
- Overall Length Metric: 74.612
- Series: 763
- Shank Diameter Decimal Inch: 0.286
- Surface Treatment: UNCOATED
- Thread Length Decimal Inch: 1.25
- Thread Length Fractional Inch: 1-1/4
- Thread Limit: D6
- Thread Size: M10x1.5
- Type: Standard
- Applicable Materials: Copper, Brass, Aluminum and Soft Ductile Materials
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: TITAN USA
- System of Measurement: Metric
- Item Features
- Allows for threading close to bottom in blind holes
- Cuts more efficiently than bottoming taps
- Slightly longer chamfer distributes cutting over greater number of teeth for increased production
- Materials for tapping in relatively deep holes
- Can be used for through or blind holes
