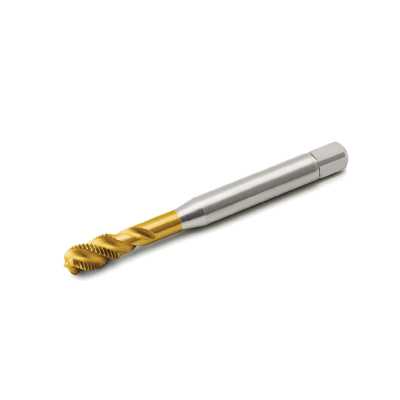

MTH-3/4-16UNF-BC-V043 THREADMASTER TAP

MTH-3/4-16UNF-BC-V043 THREADMASTER TAP

SEC03000279 03000279
284.54 / EA
http://schema.org/OutOfStock
MTH-3/4-16UNF-BC-V043 THREADMASTER TAP
  • Chamfer: Modified Bottoming
  • Class of Fit: 2B
  • Hand Direction: Right Hand
  • Material: Powdered Metal
  • Number of Flutes: 4
  • Overall Length Decimal Inch: 125
  • Overall Length Metric: 3175
  • Series: Threadmaster™ MTH-V043
  • Shank Diameter Decimal Inch: 0.551
  • Shank Diameter Metric: 14
  • Surface Treatment: TiN Coated
  • Thread Length Decimal Inch: 0.984
  • Thread Length Metric: 25
  • Thread Limit: H6
  • Thread Size: 3/4-16
  • Thread Standard: UNF
  • Through Coolant (Yes/No): No
  • Applicable Materials: Stainless Steel, Steel, Aluminum Alloy and Copper Alloy
  • Country of Origin: IN
  • Flute Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
  • System of Measurement: Imperial
QTY
Add to List
  • Application
  • Item Features
  • Standards
For blind hole applications
  • Optimized threading operations
  • Versatility of combined processes
  • Reduced tooling inventory and cost
  • Superior thread surfaces
  • High efficiency chip evacuation
  • Longer tool life
DIN 2184-1
