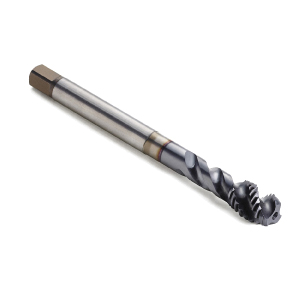

MTH-M12X1.75ISO6H-BC-M004 THREADMASTER
MTH-M12X1.75ISO6H-BC-M004 THREADMASTER
SEC03000120
03000120
145.24
/ EA
http://schema.org/OutOfStock
/Product/SEC03000120
- Chamfer: Modified Bottoming
- Class of Fit: 6H
- Hand Direction: Right Hand
- Material: Cobalt
- Number of Flutes: 3
- Overall Length Decimal Inch: 110
- Overall Length Metric: 2794
- Series: Threadmaster™ MTH-M004
- Shank Diameter Decimal Inch: 0.354
- Shank Diameter Metric: 9
- Surface Treatment: TiCN Coated
- Thread Length Decimal Inch: 0.906
- Thread Length Fractional Inch: 29/32
- Thread Length Metric: 23
- Thread Limit: H6
- Thread Size: M12x1.75
- Through Coolant (Yes/No): No
- Applicable Materials: Stainless Steel
- Country of Origin: IN
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- System of Measurement: Metric
- Application
- Item Features
- Standards
For blind hole applications
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
DIN 376
