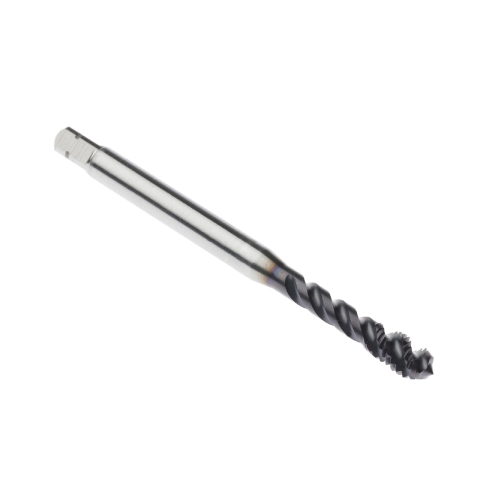

MTH-M1.6X0.35ISO6HX-BC-P003 THREADMASTER

MTH-M1.6X0.35ISO6HX-BC-P003 THREADMASTER

SEC02999995 02999995
115.13 / EA
http://schema.org/OutOfStock
MTH-M1.6X0.35ISO6HX-BC-P003 THREADMASTER
  • Chamfer: Modified Bottoming
  • Class of Fit: 6HX
  • Hand Direction: Right Hand
  • Material: Powdered Metal
  • Number of Flutes: 2
  • Overall Length Decimal Inch: 40
  • Overall Length Metric: 1016
  • Series: Threadmaster™ MTH-P003
  • Shank Diameter Decimal Inch: 0.098
  • Shank Diameter Metric: 2.5
  • Surface Treatment: AlTiN Coated
  • Thread Length Decimal Inch: 0.157
  • Thread Length Metric: 4
  • Thread Limit: H6
  • Thread Size: M1.6x0.35
  • Through Coolant (Yes/No): No
  • Applicable Materials: Steel
  • Country of Origin: DE
  • Flute Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
  • System of Measurement: Metric
QTY
Add to List
  • Application
  • Item Features
  • Standards
For blind hole applications
  • Optimized threading operations
  • Versatility of combined processes
  • Reduced tooling inventory and cost
  • Superior thread surfaces
  • High efficiency chip evacuation
  • Longer tool life
DIN 371
