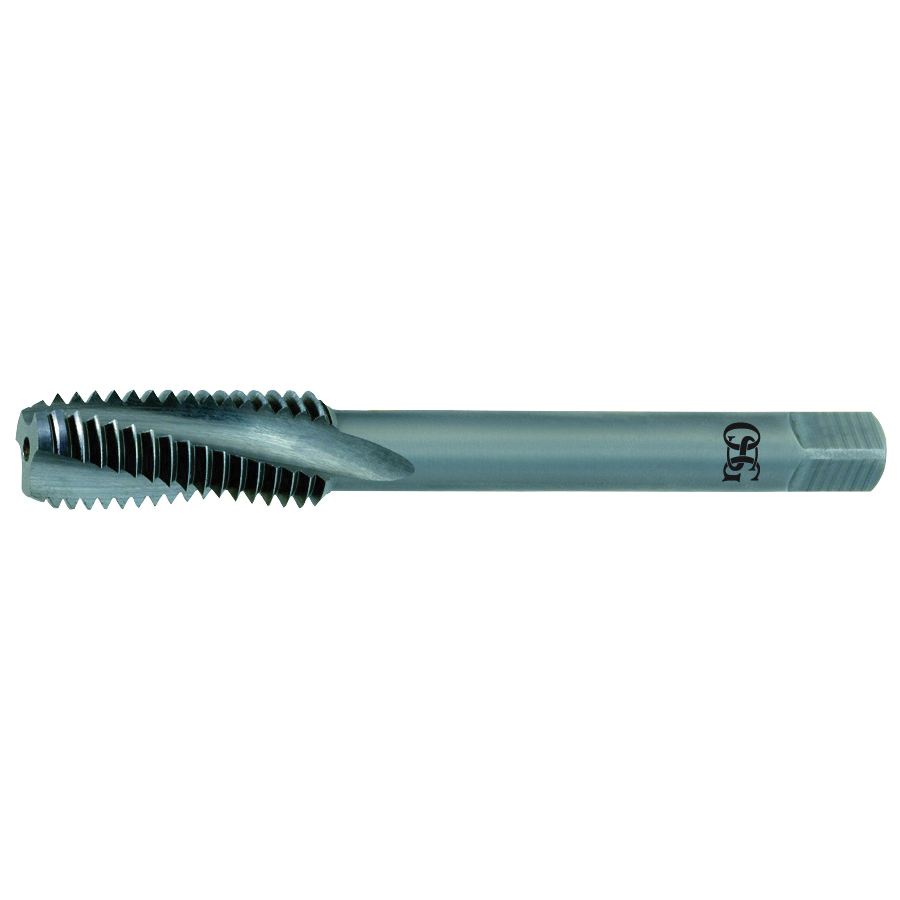

M10 x 1.25 OH4 2.5P OT-SFT TAP
M10 x 1.25 OH4 2.5P OT-SFT TAP
OSG8315302
8315302
464.88
/ EA
http://schema.org/OutOfStock
/Product/OSG8315302
- Chamfer: 2.5P-3P Modified Bottoming
- Hand Direction: Right Hand
- Material: Carbide
- Number of Flutes: 3
- Overall Length Decimal Inch: 75
- Overall Length Metric: 1905
- Series: 389
- Shank Diameter Decimal Inch: 0.276
- Shank Diameter Metric: 7
- Size: M10
- Surface Treatment: Bright
- Thread Length Decimal Inch: 0.945
- Thread Length Metric: 24
- Thread Limit: OH4
- Thread Size: M10-1.25
- Through Coolant (Yes/No): No
- Applicable Materials: Aluminum, Cast Aluminum and Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
The EXOCARB® carbide taps are designed to excel in aluminum, aluminum casting and cast iron. TiAN and TiCN coating are available upon request for a longer tool life.
- Application
- Item Features
- Standards
- Recommended Speeds
Blind Hole and Through Hole Applications
- Micrograin carbide body - superior hardness and wear resistance versus high speed steel
- Modified bottom - provides versatile use in both through and blind hole applications
REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Workpiece material | Suitability | Cutting speed (SFM) |
|---|---|---|
| K — Cast Iron | ||
| Cast Iron | Best | 40 – 90 |
| N — Non-Ferrous | ||
| Aluminum: 6061; 7075 | Best | 50 – 100 |
| Aluminum: Casting | Best | 50 – 80 |
Speeds and suitability ratings supplied by OSG for the EXOCARB SFT series. Starting values — adjust for your setup, coolant and workholding rigidity.
