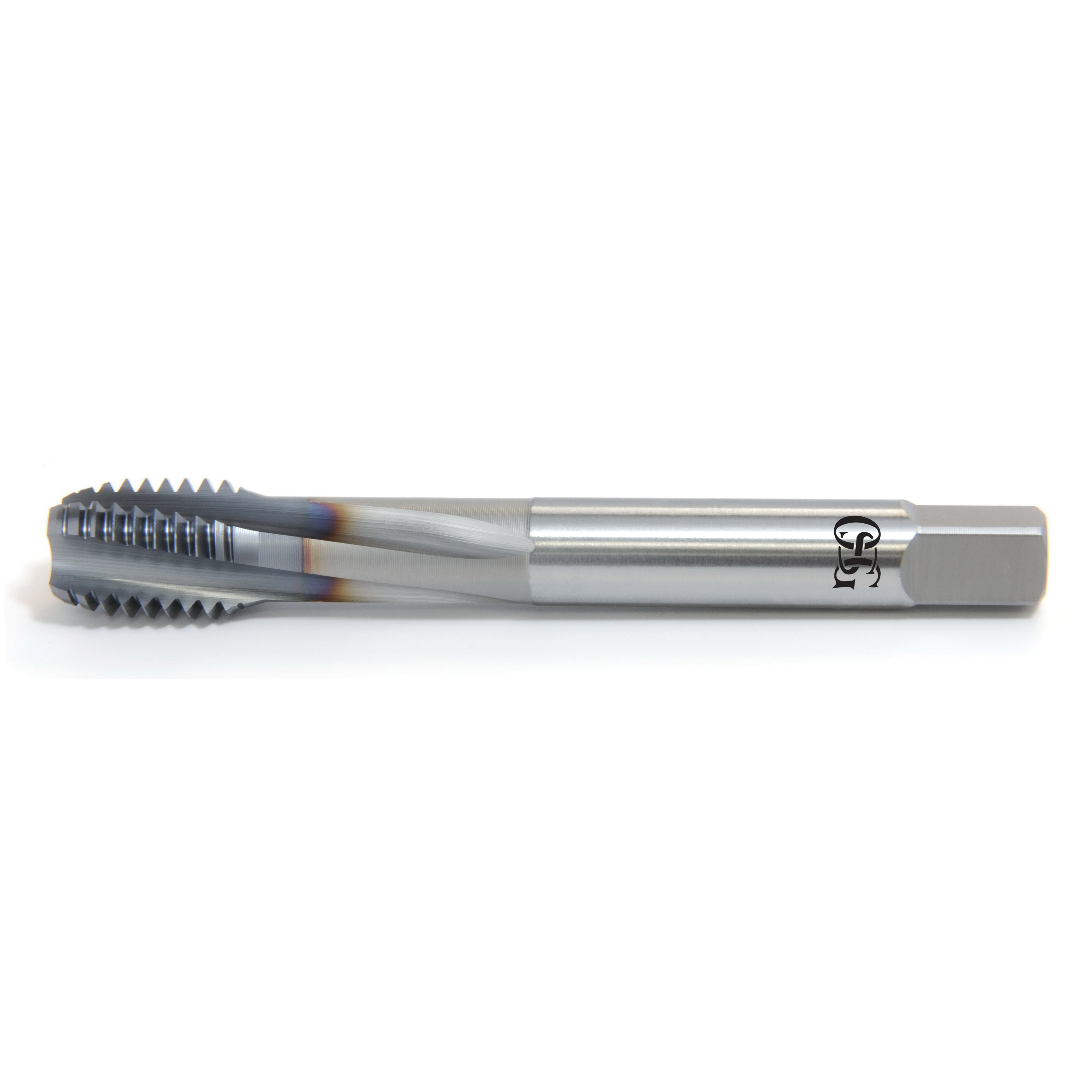

M14 x 1.5 D6 3RX VC10TI DIN OH V TAP
M14 x 1.5 D6 3RX VC10TI DIN OH V TAP
OSG34821308
34821308
210.47
/ EA
http://schema.org/OutOfStock
/Product/OSG34821308
- Chamfer: 2.5P-3P Modified Bottoming
- Hand Direction: Right Hand
- Material: VC-10
- Number of Flutes: 3
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Series: 348Ti
- Shank Diameter Decimal Inch: 0.429
- Shank Diameter Metric: 10.89
- Size: M14
- Surface Treatment: V-Coated
- Thread Length Decimal Inch: 0.63
- Thread Length Metric: 16
- Thread Limit: D6
- Thread Size: M14-1.5
- Through Coolant (Yes/No): Yes
- Type: High Performance Premium
- Applicable Materials: Alloy Steel, Hardened Steel, Heat-Resistant Super Alloy, High Nickel Alloy, Stainless Steel and Titanium Alloy
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Application
- Item Features
- Standards
- Recommended Speeds
Aerospace, Medical and Through Hole Applications
- Premium powdered metal VC-10® substrate - increased hardness for longer life
- OSG V-coating - increased hardness, lubricity and wear resistance
- DIN overall length - provides greater reach capability
REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Workpiece material | Suitability | Cutting speed (SFM) |
|---|---|---|
| P — Steel | ||
| Alloy Steels: 4140; 4340 | Good | 15 – 30 |
| M — Stainless Steel | ||
| Stainless Steels: 17-4PH | Good | 8 – 20 |
| S — HRSA & Titanium | ||
| Nickel Alloy : Inconel | Best | 8 – 15 |
| Titanium : 6AL4V (30HRC) | Best | 8 – 15 |
| H — Hardened Steel | ||
| Hardened Steels: 35 HRC | Good | 15 – 35 |
| Hardened Steels: 35-45 HRC | Good | 10 – 20 |
Speeds and suitability ratings supplied by OSG for the EXOTAP VC-10 series. Starting values — adjust for your setup, coolant and workholding rigidity.
