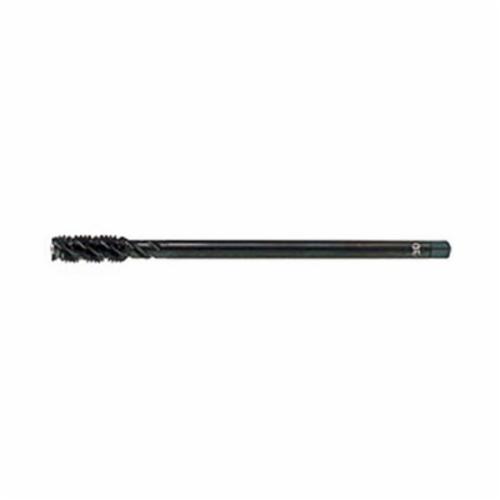

1/2-20 x 6 H3 3FL SEMI-BTM VA3 SO TAP
1/2-20 x 6 H3 3FL SEMI-BTM VA3 SO TAP
OSG1769201
1769201
90.93
/ EA
http://schema.org/OutOfStock
/Product/OSG1769201
- Chamfer: Semi-Bottoming
- Class of Fit: H3
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 3
- Overall Length Decimal Inch: 6
- Overall Length Fractional Inch: 6
- Overall Length Metric: 152.4
- Series: 398
- Shank Diameter Decimal Inch: 0.367
- Surface Treatment: Steam Oxide
- Thread Length Decimal Inch: 2
- Thread Length Fractional Inch: 2
- Thread Limit: H3
- Thread Size: 1/2-20
- Thread Standard: UNF
- Type: High Performance Long Shank
- Applicable Materials: Low Carbon Steels, 300 and 400 Stainless Steel, Medium to High Carbon Steels
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
EXOTAP® VA-3 is the premium solution for tapping stainless steels. The long shank design enables long reach applications. The spiral flute series offers stable chip evacuation and reduces cutting forces. The spiral point series enables greater chip control and help produce tightly compacted chips for easy ejection from the hole.
- Application
- Item Features
- Standards
For blind hole applications
- Increased wear resistance
- S/O increases mechanical lubricity
- Capable of reaching 50% deeper holes than ANSI standard taps
ANSI Specified|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
