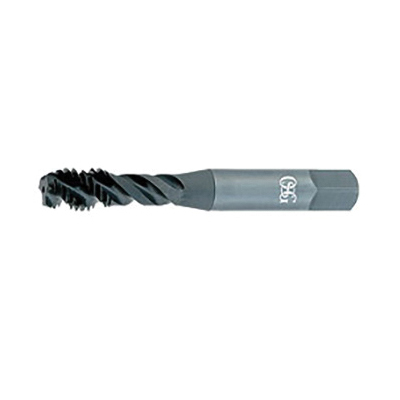

M3 x 0.5 D3 3FL SEMI-BTM EXO-TAP VA3 SO TAP
M3 x 0.5 D3 3FL SEMI-BTM EXO-TAP VA3 SO TAP
OSG1755101
1755101
39.24
/ EA
http://schema.org/OutOfStock
/Product/OSG1755101
- Chamfer: 2.5P-3P Modified Bottoming
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 3
- Overall Length Decimal Inch: 49
- Overall Length Metric: 1244.6
- Series: EXOTAP® VA-3® 343
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Shank Diameter Metric: 3.58
- Surface Treatment: Steam Oxide
- Thread Length Decimal Inch: 0.157
- Thread Length Metric: 4
- Thread Limit: D3
- Thread Size: M3x0.5
- Through Coolant (Yes/No): No
- Type: High Performance
- Applicable Materials: Steel, Stainless Steel, Tool Steel, Die Steel and Nickel Alloys
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
Taps are used to cut screw threads on the inside surfaces of holes, creating the "female" half (nut) of the screw. High precision is of vital importance, particularly in areas such as automobile engines, which require precision screws. OSG offers a lineup of taps with diameters in various sizes and with specifications suitable for a wide variety of uses.
- Application
- Item Features
- Standards
- Recommended Speeds
For blind hole applications
- Spiral flute taps utilize a helical flute
- HSS-E material increased wear-resistance
- Steam oxide surface treatment increases mechanical lubricity
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Workpiece material | Suitability | Cutting speed (SFM) |
|---|---|---|
| P — Steel | ||
| Low Carbon Steel: 1010; 1018 | Best | 25 – 80 |
| High Carbon Steel: 1065 | Good | 20 – 45 |
| Medium Carbon Steel: 1035; 1045 | Good | 20 – 50 |
| M — Stainless Steel | ||
| Stainless Steels: 300 | Best | 20 – 45 |
| Stainless Steels: 400 | Best | 20 – 45 |
| Stainless Steels: 17-4PH | Good | 8 – 20 |
Speeds and suitability ratings supplied by OSG for the EXOTAP VA-3 series. Starting values — adjust for your setup, coolant and workholding rigidity.
