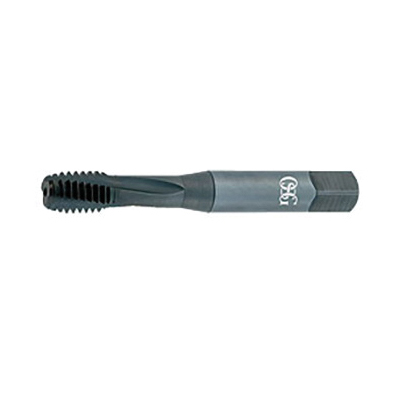

1/4-20 H5 3RX SEMI-BTM EXO-TAP VC-10 TAP
1/4-20 H5 3RX SEMI-BTM EXO-TAP VC-10 TAP
OSG1703508
1703508
45.88
/ EA
http://schema.org/OutOfStock
/Product/OSG1703508
- Chamfer: 2.5P-3P Modified Bottoming
- Hand Direction: Right Hand
- Material: VC-10
- Number of Flutes: 3
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Series: EXOTAP® 313
- Shank Diameter Decimal Inch: 0.255
- Surface Treatment: V-Coated
- Thread Length Decimal Inch: 0.398
- Thread Limit: H5
- Thread Size: 1/4-20
- Thread Standard: UNC
- Through Coolant (Yes/No): No
- Type: High Performance
- Applicable Materials: Steel, Stainless Steel, Aluminum and Heat-Resistant Alloys
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
Taps are used to cut screw threads on the inside surfaces of holes, creating the "female" half (nut) of the screw. High precision is of vital importance, particularly in areas such as automobile engines, which require precision screws. OSG offers a lineup of taps with diameters in various sizes and with specifications suitable for a wide variety of uses.
- Application
- Item Features
- Standards
For blind hole applications
- Spiral flute taps utilize a helical flute
- Premium powdered metal VC-10 substrate increased hardness for longer life
- OSG V-coating increased hardness, lubricity and wear-resistance
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
