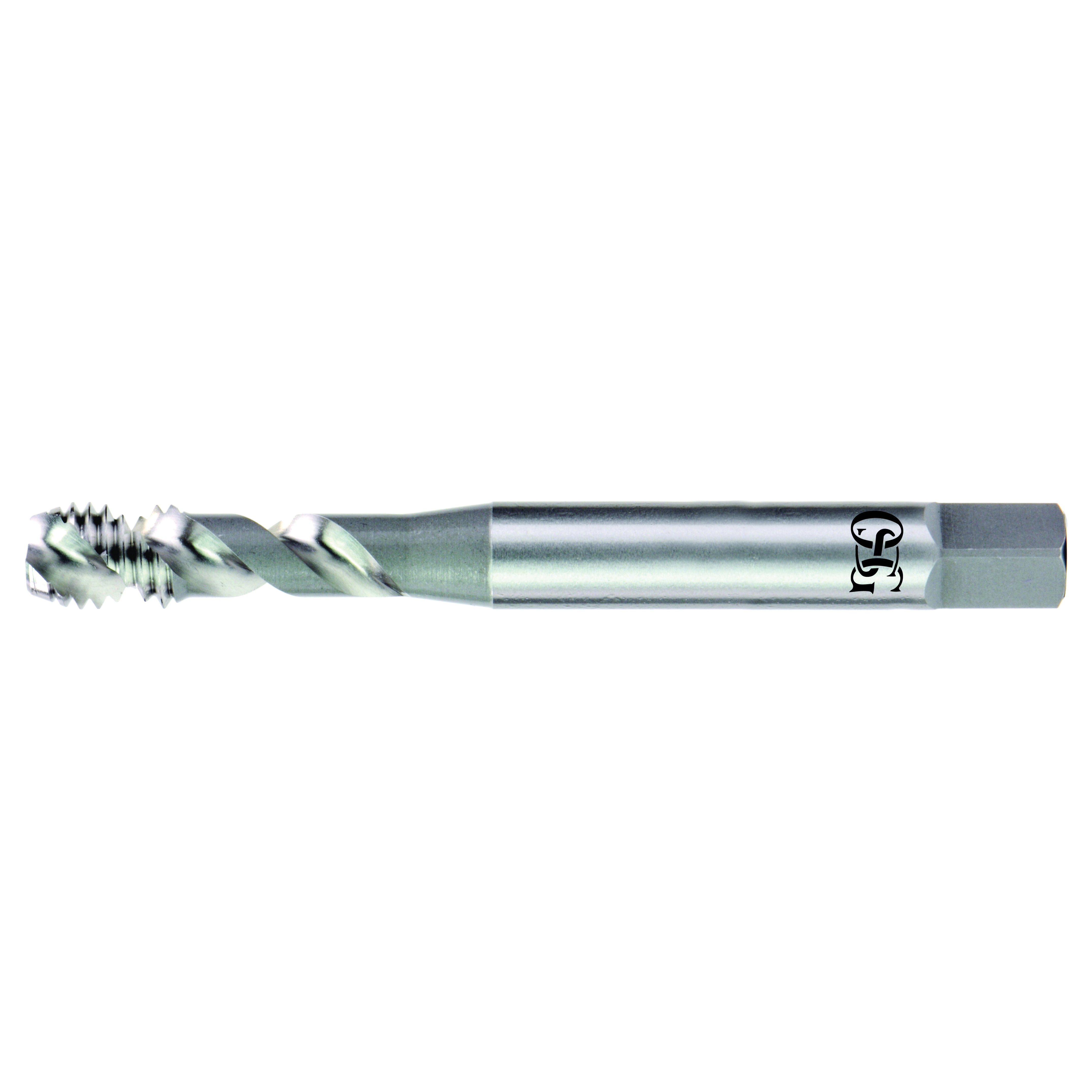

M10 x 1.25 D5 3FL MOD BTM HYPRO AL DIN TAP

M10 x 1.25 D5 3FL MOD BTM HYPRO AL DIN TAP

OSG1311900903 1311900903
48.00 / EA
http://schema.org/OutOfStock
M10X1.25 D5 3FX MOD BTM HYPRO AL DIN TAP
  • Chamfer: 2.5P-3P Modified Bottoming
  • Class of Fit: JIS 2
  • Hand Direction: Right Hand
  • Material: HSSE
  • Number of Flutes: 3
  • Overall Length Decimal Inch: 100
  • Overall Length Metric: 2540
  • Series: 13119
  • Shank Diameter Decimal Inch: 0.381
  • Shank Diameter Metric: 9.67
  • Size: M10
  • Surface Treatment: Nitride Coated
  • Thread Length Decimal Inch: 0.472
  • Thread Length Metric: 12
  • Thread Limit: D5
  • Thread Size: M10-1.25
  • Through Coolant (Yes/No): No
  • Type: High Performance Premium
  • Applicable Materials: Aluminum and Cast Aluminum
  • Has Attributes: Yes
  • Has Image: Yes
  • System of Measurement: Metric
QTY
Add to List
  • Application
  • Item Features
  • Standards
  • Recommended Speeds
Blind Hole Applications
  • HSSE material - increased wear resistance
  • Nitride surface treatment - extra surface hardness for longer life
  • DIN overall length - provides greater reach capability
ANSI Specified|DIN Standard|REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Workpiece materialSuitabilityCutting speed (SFM)
N — Non-Ferrous
Aluminum: 6061; 7075Best40 – 80
Aluminum: CastingBest40 – 65

Speeds and suitability ratings supplied by OSG for the HY-PRO AL series. Starting values — adjust for your setup, coolant and workholding rigidity.
