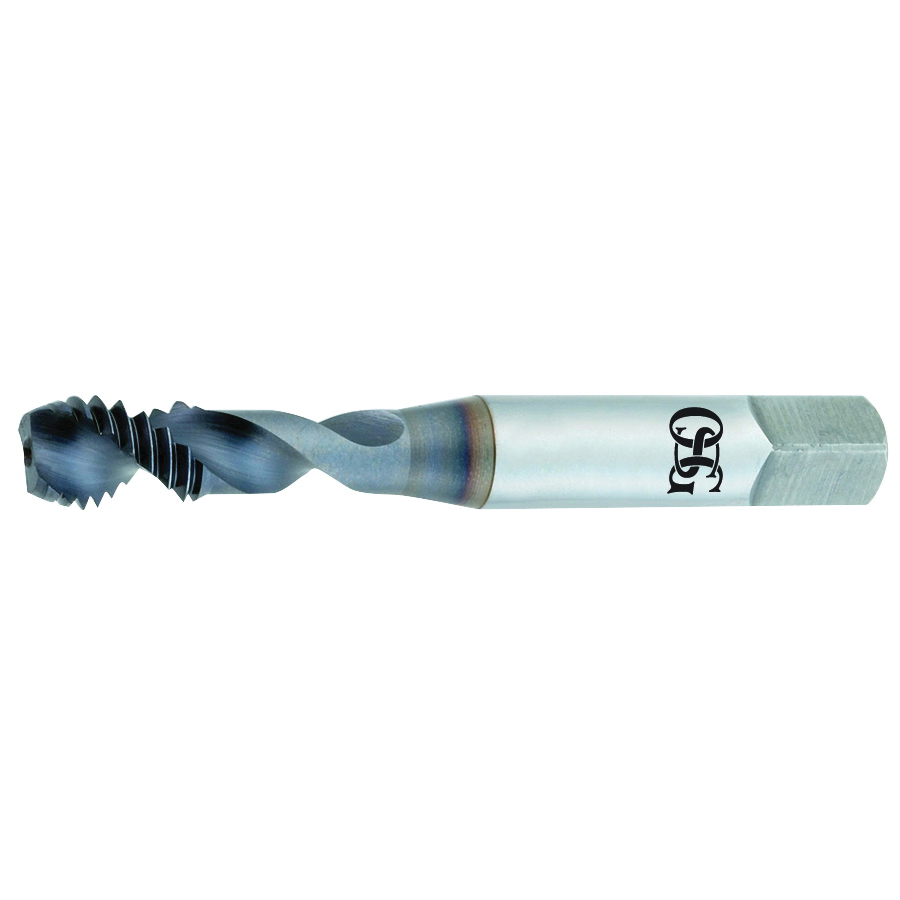

1/2-20 2B 2.5P HY-PRO US-AL-SFT TAP
1/2-20 2B 2.5P HY-PRO US-AL-SFT TAP
OSG1305801208
1305801208
53.54
/ EA
http://schema.org/OutOfStock
/Product/OSG1305801208
- Chamfer: 2.5P-3P Modified Bottoming
- Class of Fit: 2B
- Hand Direction: Right Hand
- Material: HSSE
- Number of Flutes: 2
- Overall Length Decimal Inch: 3.37
- Overall Length Metric: 85.598
- Series: 13058
- Shank Diameter Decimal Inch: 0.367
- Size: 1/2in
- Surface Treatment: V-Coated
- Thread Length Decimal Inch: 0.614
- Thread Size: 1/2-20
- Thread Standard: UNF
- Through Coolant (Yes/No): No
- Type: Premium
- Applicable Materials: Aluminum and Cast Aluminum
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
- Application
- Item Features
- Standards
For synchronized tapping alloy and blind hole applications
- HSSE material - increased wear resistance
- TiCN coating - improves wear resistance for extended tap life
- Extra thread relief - eliminates friction to enable high speed tapping
REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
