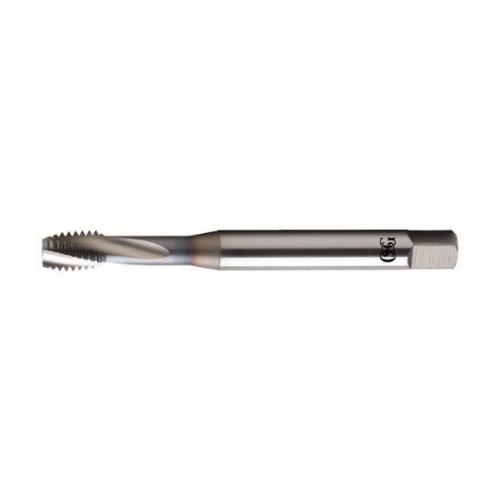

1/4-28 2B 3FL 1.5P HYPRO-ALLOY DIN TAP
1/4-28 2B 3FL 1.5P HYPRO-ALLOY DIN TAP
OSG1301300608
1301300608
54.15
/ EA
http://schema.org/OutOfStock
/Product/OSG1301300608
- Chamfer: Bottoming
- Class of Fit: 2B
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 3
- Overall Length Decimal Inch: 80
- Overall Length Metric: 2032
- Series: 13013
- Shank Diameter Decimal Inch: 0.255
- Surface Treatment: V Coated
- Thread Length Decimal Inch: 1
- Thread Length Fractional Inch: 1
- Thread Size: 1/4-28
- Thread Standard: UNF
- Through Coolant (Yes/No): Yes
- Type: High Performance
- Applicable Materials: Alloy Steel, Aluminum, Carbon Steel, Cast Iron and Die Steel
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Imperial
- Application
- Standards
For threading blind hole applications
DIN Rated|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
