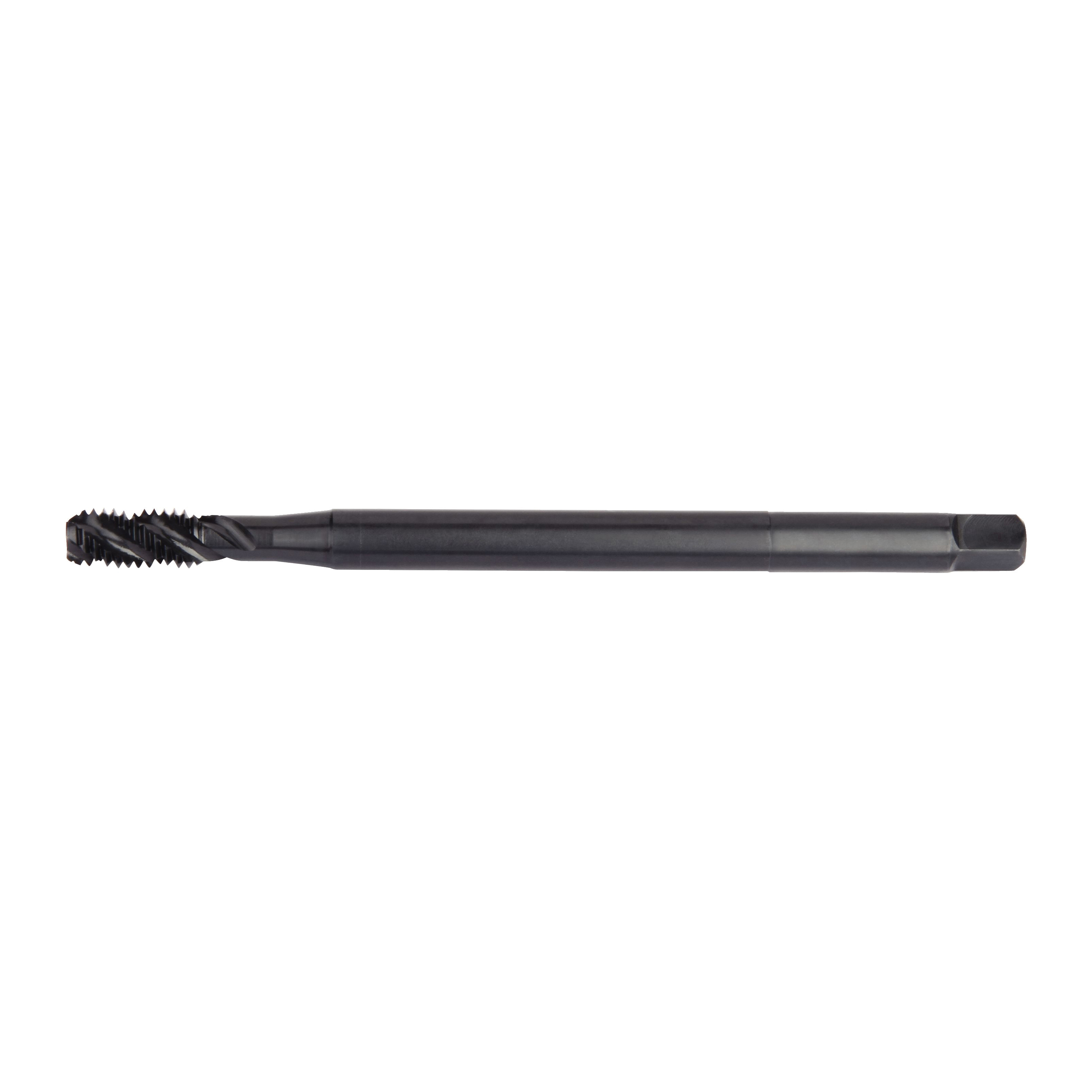

3/8-16 H3 3FL BTM TAP SPFL 6IN OX

3/8-16 H3 3FL BTM TAP SPFL 6IN OX

GRE5602138 5602138
122.62 / EA
http://schema.org/OutOfStock
  • Chamfer: Bottoming
  • Hand Direction: Right Hand
  • Material: High Vanadium HSS-E
  • Number of Flutes: 3
  • Overall Length Decimal Inch: 6
  • Overall Length Fractional Inch: 6
  • Overall Length Metric: 152.4
  • Series: VT-SFT
  • Shank Diameter Decimal Inch: 0.381
  • Surface Treatment: BLACK OXIDE
  • Thread Length Decimal Inch: 0.75
  • Thread Length Fractional Inch: 3/4
  • Thread Limit: H3
  • Thread Size: 3/8-16
  • Thread Standard: UNC
  • Type: Extension Form E High Performance Multi-Purpose
  • Applicable Materials: Carbon and Alloy Steels, Stainless Steels, Ductile Iron and Cast Aluminum
  • Country of Origin: US
  • Flute Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: WIDIA
  • System of Measurement: Imperial
VariTap™ is the high performance multi-purpose tapping solution from WIDIA. VariTap™ has an optimized geometry capable of working in a wide variety of ductile materials - including carbon and alloy steels, stainless steels, ductile iron and cast aluminum. VariTap™ reduces inventory costs without losing the benefit of high quality threads and consistent tool life. With a wide range of inch and metric standard sizes, pitch diameter limits, classes of fit, chamfer styles and coatings, VariTap™ offers the most expensive portfolio of multi-purpose taps available on the market. VariTap™ now includes ISO pipe taps for through and blind hole applications.
QTY
  • Application
  • Item Features
  • Standards
For blind hole applications
  • Spiral flute geometry optimized to provide efficient chip ejection in blind holes
  • Manufactured from high vanadium HSS-E to provide long and consistent tool life
  • Geometry designed to allow tapping of a wide variety of ductile materials
  • Ideal for customers who have a variety of materials to machine
  • Bottoming chamfer (1-2P) - for threading close to the bottom of blind holes
  • WP49EG grade - HSS-E substrate with black oxide surface treatment
ANSI Specified
