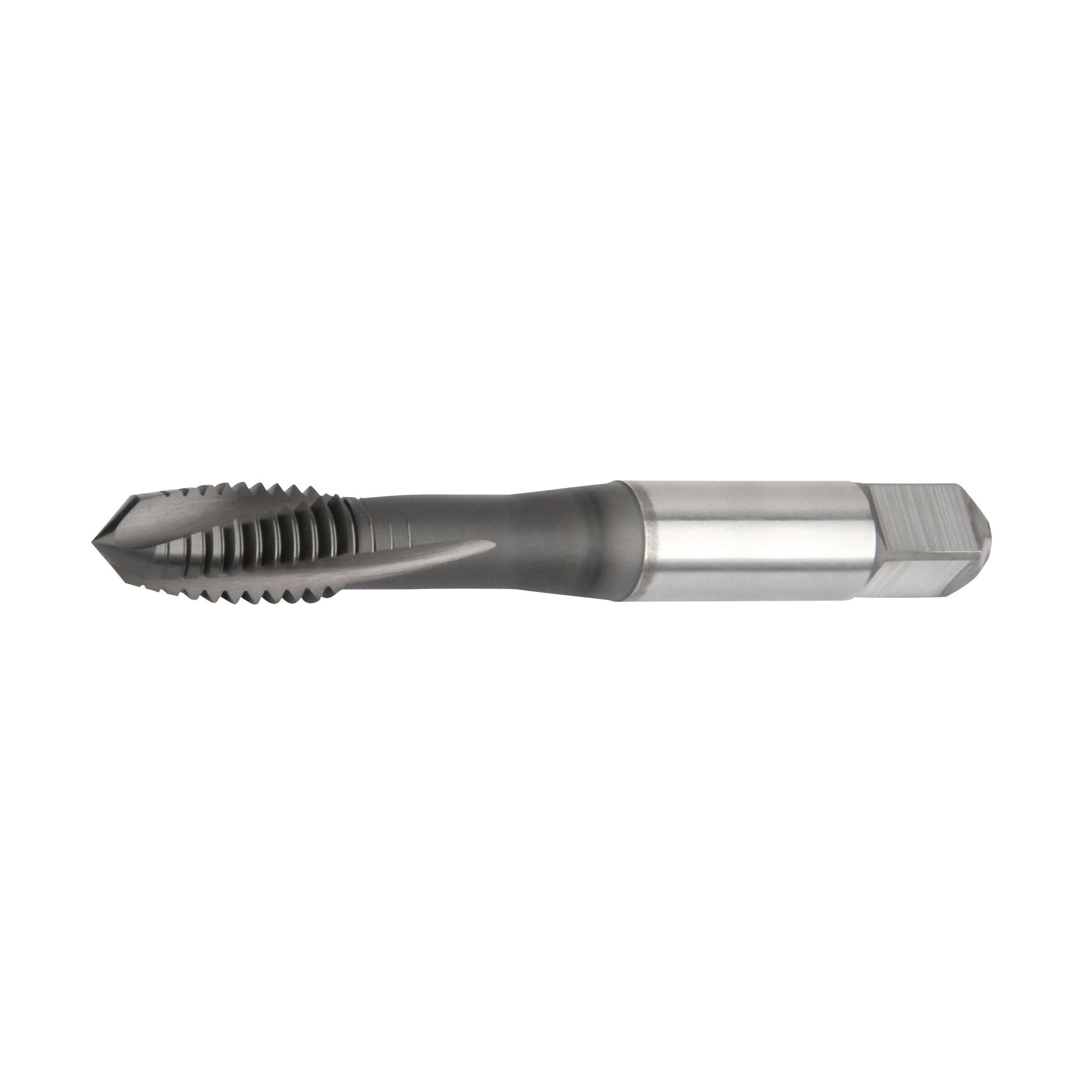

M2.5x0.45 D3 3FL LHSF PLUG TAP HSS-E-PM
M2.5x0.45 D3 3FL LHSF PLUG TAP HSS-E-PM
GRE5563021
5563021
68.43
/ EA
http://schema.org/OutOfStock
/Product/GRE5563021
- Chamfer: Plug
- Hand Direction: Left Hand
- Material: HSS-E-PM
- Number of Flutes: 3
- Overall Length Decimal Inch: 1.81
- Overall Length Metric: 45.974
- Series: GT60
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Surface Treatment: Nitride Coated
- Thread Length Decimal Inch: 0.49
- Thread Limit: D3
- Thread Size: M2.5x0.45
- Thread Standard: Coarse
- Type: Form D High Performance
- Applicable Materials: Titanium and Titanium Alloys
- Country of Origin: US
- Flute Direction: Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: WIDIA
- System of Measurement: Metric
- Application
- Item Features
- Standards
For through hole applications
- Left hand spiral flutes to push chips ahead in through holes
- Offer performance advantages over conventional high speed steel taps
- Long tap life at up to 50% higher tapping speed than HSS taps
- Plug chamfer (3-5P) - the most common chamfer for use by hand or machine in through or blind holes
- This chamfer is more efficient than a bottoming or modified bottoming chamfer
- WS30MG grade - surface treated HSS-E-PM, powder metal HSS-E-PM substrate with nitride surface treatment that provides wear resistance in non-ferrous materials including titanium
ANSI 302A
