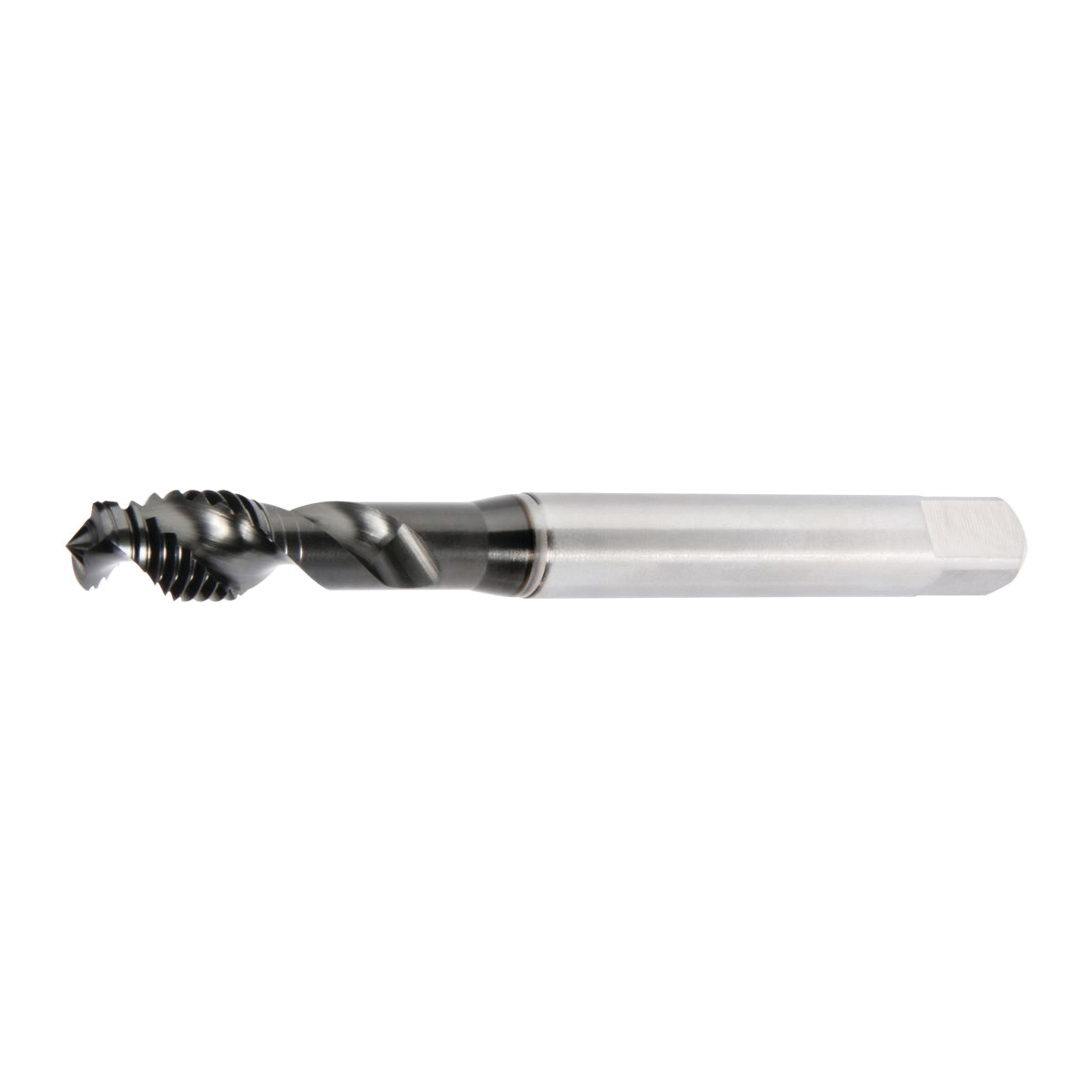

M10x1.5 6H TAP RHSF 371 HSS-E
M10x1.5 6H TAP RHSF 371 HSS-E
GRE4160059
4160059
166.29
/ EA
http://schema.org/OutOfStock
/Product/GRE4160059
- Chamfer: Semi-Bottoming
- Class of Fit: 6H
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 2
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Series: GT80
- Shank Diameter Decimal Inch: 0.394
- Shank Diameter Metric: 10
- Surface Treatment: DLC Coated
- Thread Length Decimal Inch: 0.63
- Thread Length Metric: 16
- Thread Size: M10x1.5
- Thread Standard: Coarse
- Through Coolant (Yes/No): Yes
- Type: Form C High Performance
- Applicable Materials: Wrought Aluminum, Cast Aluminum, Copper and Copper Alloys
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Application
- Item Features
- Standards
For blind hole applications
- New generation of high performance, high speed steel powdered metal taps for material specific tapping applications
- Optimum combination of grades, geometries and coatings to deliver higher quality threads and longer tool life
- Boost your productivity with our unique, highly wear resistant powder metal substrate, modified with a higher than standard cobalt content for greater heat resistance
- Enhanced design for reliable thread in different materials
- More resistant to edge chipping than carbide
- Better performance at high speeds
- Chamfer design for minimized chip load and lower torque
- Manufactured from powdered metal high speed steel coated for thread cutting and thread forming in various applications
- Offer performance advantages over other regular high speed steel taps
- High wear resistance and hot hardness without sacrificing edge strength
- PVD coatings offer outstanding thermal stability, hot hardness, oxidation resistance and low coefficient of friction
- Taps can be used in collet and hydraulic holders
- Low runout of thread and chamfer
- Coated HSS-E, PVD lower vanadium HSS-E substrate with DLC coating
- WN48EG coating grade
DIN 371
