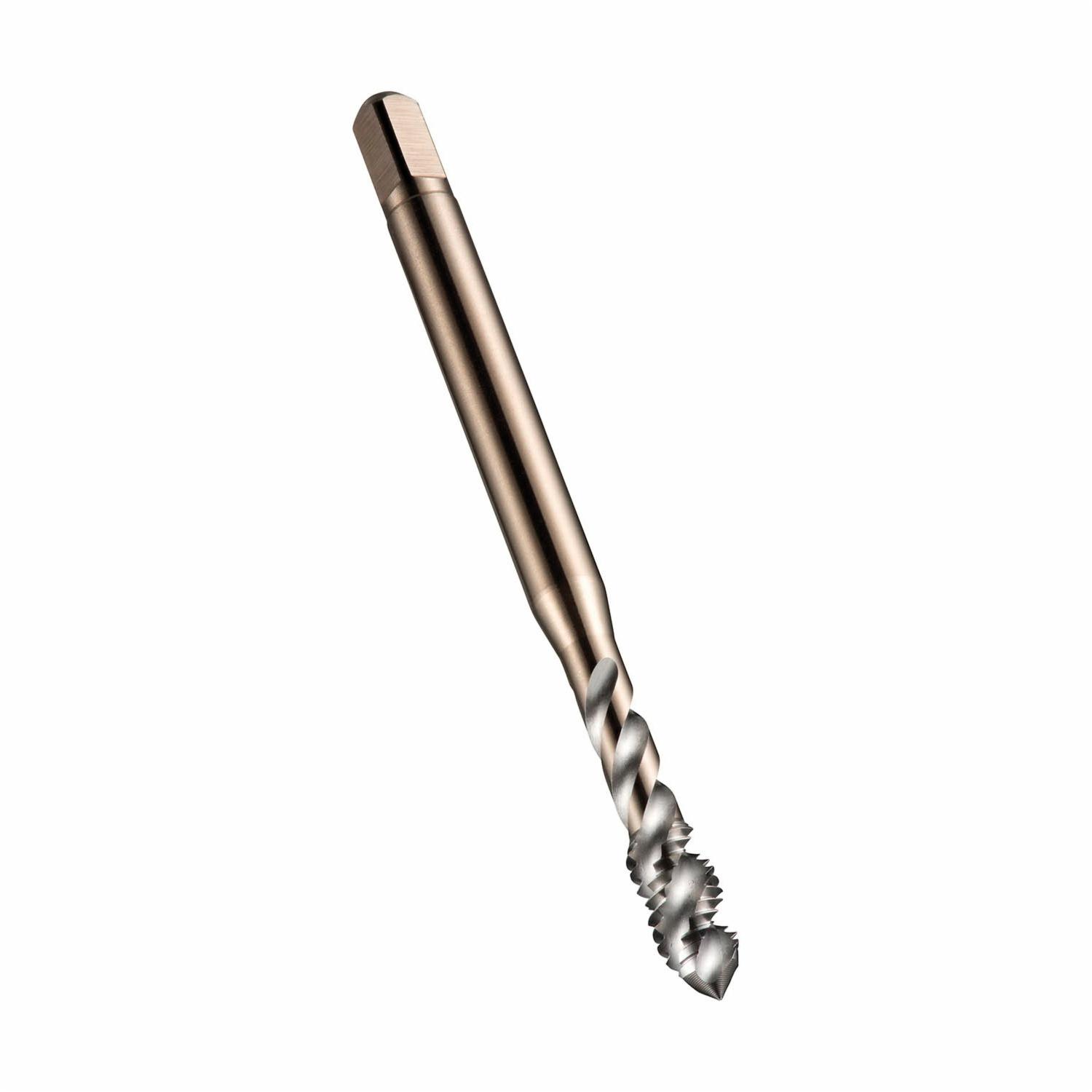

M10X1.50MM E007 HSS-E SPIRAL FLUTE
M10X1.50MM E007 HSS-E SPIRAL FLUTE
DOR5973786
5973786
56.39
/ EA
http://schema.org/OutOfStock
/Product/DOR5973786
- Applicable Materials: Tough or Abrasive Materials
- Chamfer: Semi-Bottoming
- Class of Fit: 6H/D6
- Hand Direction: Right Hand
- Material: HSS-XS1
- Number of Flutes: 3
- Overall Length Decimal Inch: 2.9375
- Overall Length Fractional Inch: 2-15/16
- Overall Length Metric: 74.612
- Series: E007
- Shank Diameter Decimal Inch: 0.381
- Surface Treatment: Gold
- Thread Length Decimal Inch: 0.531
- Thread Length Fractional Inch: 17/32
- Thread Limit: H6
- Thread Size: M10x1.5
- Thread Standard: UNC
- Through Coolant (Yes/No): No
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Application
- Item Features
- Standards
For multi applications
- Premium substrate for blind hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Reinforced shank
ANSI Specified|CSA Approved
