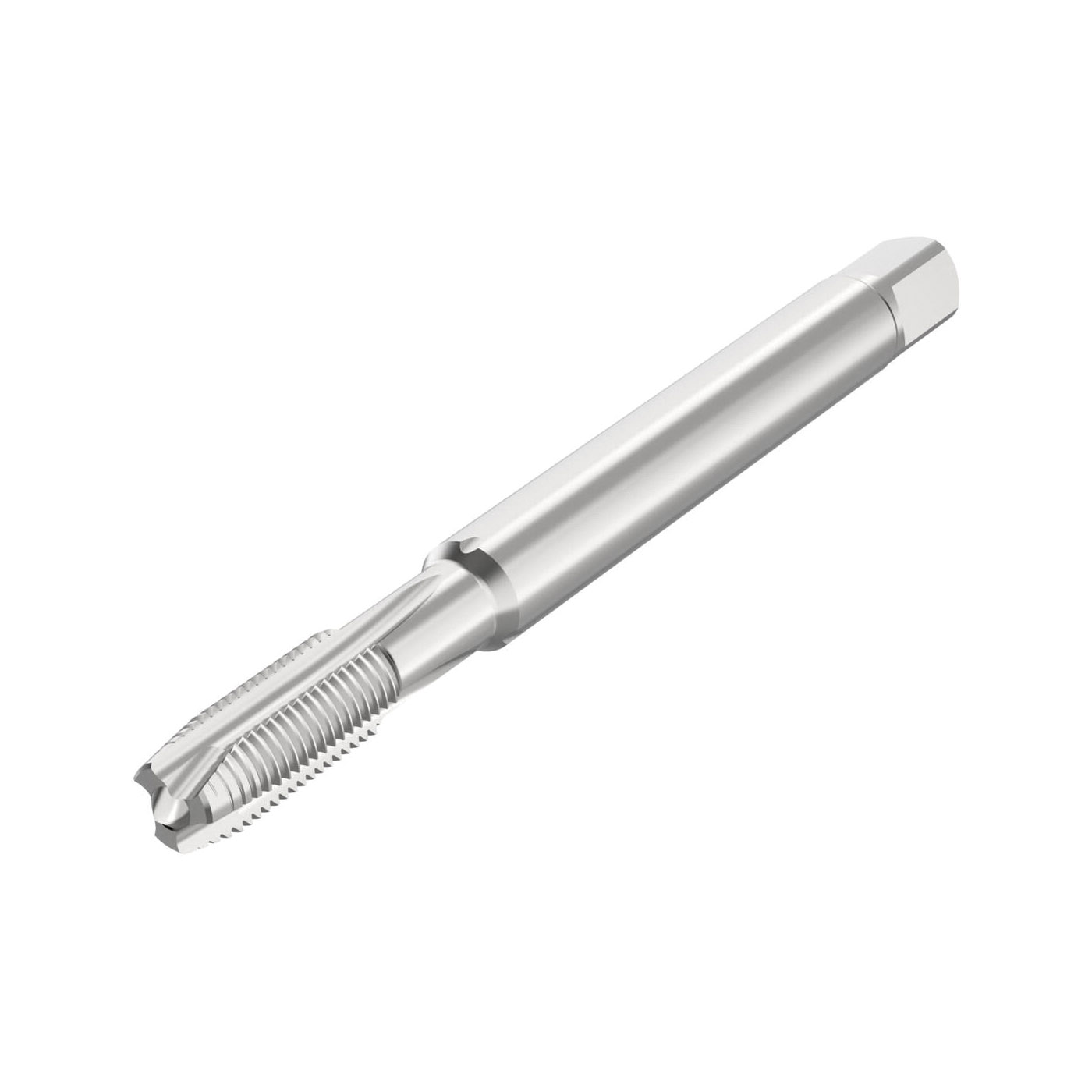

MTP-10-32EGUNF3B-TB-S043 THRU HOLE TAP
MTP-10-32EGUNF3B-TB-S043 THRU HOLE TAP
SEC10001214
10001214
72.36
/ EA
http://schema.org/OutOfStock
/Product/SEC10001214
- Chamfer: Plug
- Class of Fit: 3B
- Material: HSS-E-PM
- Number of Flutes: 3
- Overall Length Decimal Inch: 3.15
- Overall Length Metric: 80.01
- Shank Diameter Decimal Inch: 0.236
- Surface Treatment: UNCOATED
- Tap Drill Size: 0.201 in, 0.201in
- Thread Length Decimal Inch: 0.591
- Thread Size: 10-32
- Type: Helix Through Hole
- Country of Origin: DE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- System of Measurement: Imperial
- Thread Type: STIUNF
Seco's range of 280 helix point and 73 straight threading taps for through holes are available for general purpose and material-specific applications. Most come with or without internal coolant in both helix point and straight fluted taps. The tap dimension range for general purpose covers 2 to 36 mm in thread profiles M, MF, UNC, UNF, G, NPT and NPTF. For material-specific (ISO P, M and N) helix point taps, the range is from 1 to 30 mm in thread profiles M and MF. Straight fluted (ISO-K) thread profiles range from 3 to 42 mm in thread profiles M, MF, UNC, UNF and G.
- Application
General Purpose and Material Specific Applications
