343STI M5 x 0.8 D3 3FL BOTT STI TAP
343STI M5 x 0.8 D3 3FL BOTT STI TAP
OSG34300501
34300501
37.60
/ EA
http://schema.org/OutOfStock
/Product/OSG34300501
- Chamfer: 2.5P-3P Modified Bottoming
- Material: HSSE
- Number of Flutes: 3
- Overall Length: 63mm
- Series: 343STI
- Shank Diameter: 6.47mm
- Square Size: 7.9mm L x 4.85mm W
- Surface Treatment: Steam Oxide
- System of Measurement: Metric
- Thread Length: 8mm
- Thread Size: M5
- Type: 45° Helix High Performance
- Has Attributes: Yes
- Has Image: Yes

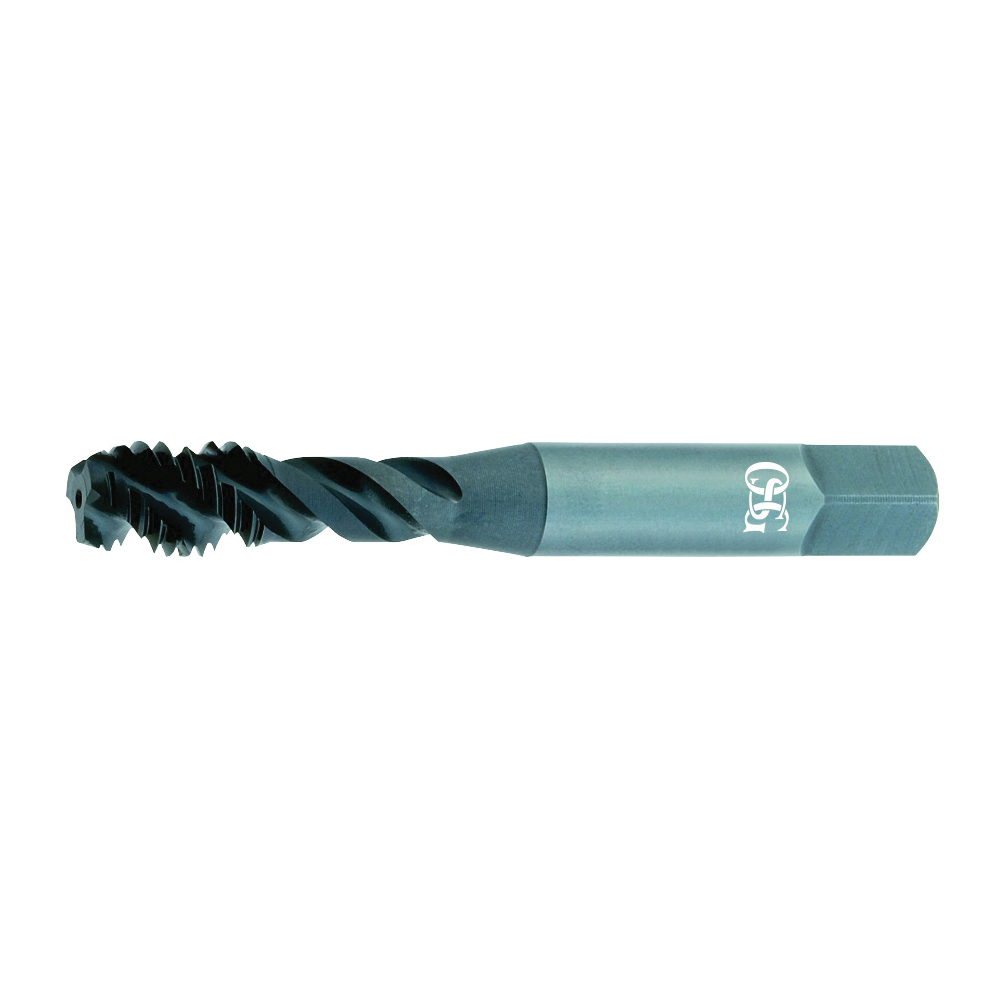

EXOTAP® VA-3® is the premium solution for tapping helicoil (STI) threads in stainless steels.
- Application
- Item Features
- Standards
For difficult to machine materials applications
- HSS material - increased wear resistance
- Spiral flute - for blind hole applications
- Steam oxide surface treatment - steam oxide increases mechanical lubricity
- Inch and metric - complete offering
- Screw thread insert (STI) tap - repair stripped threaded holes
- Without through coolant
REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
