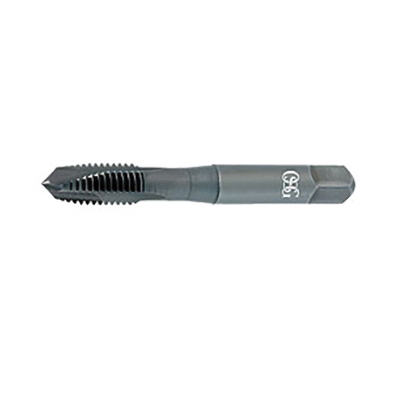

M2 x 0.4 STI D2 2S/P PLUG EXO-TAP VA3 V TAP
M2 x 0.4 STI D2 2S/P PLUG EXO-TAP VA3 V TAP
OSG34200108
34200108
59.22
/ EA
http://schema.org/OutOfStock
/Product/OSG34200108
- Applicable Materials: Steel, Stainless Steel, Aluminum and Heat-Resistant Alloys
- Chamfer: 3.5P-4.5P Plug
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 2
- Overall Length Decimal Inch: 46
- Overall Length Metric: 1168.4
- Series: EXOTAP® VA-3® 342STI
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Shank Diameter Metric: 3.58
- Surface Treatment: V-Coated
- Thread Length Decimal Inch: 0.236
- Thread Length Metric: 6
- Thread Limit: D2
- Thread Size: M2x0.4
- Type: High Performance
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Through Coolant (Yes/No): No
Taps are used to cut screw threads on the inside surfaces of holes, creating the "female" half (nut) of the screw. High precision is of vital importance, particularly in areas such as automobile engines, which require precision screws. OSG offers a lineup of taps with diameters in various sizes and with specifications suitable for a wide variety of uses.
- Application
- Item Features
- Standards
Through Hole Applications
- Spiral point taps push chips forward
- HSS-E material increased wear-resistance
- Steam oxide surface treatment increases mechanical lubricity
- OSG V-coating increased hardness, lubricity and wear-resistance
- Screw thread insert (STI) tap repair stripped threaded holes
