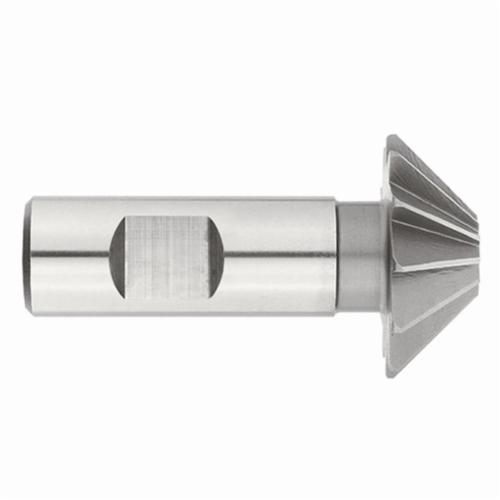

3/4x3/16 3/8SHK 3T TiN 45DEG
3/4x3/16 3/8SHK 3T TiN 45DEG
KEMC105-12643
105-12643
120.05
/ EA
http://schema.org/OutOfStock
/Product/KEMC105-12643
- Type: Chamfered Straight Teeth
- Cutting Width: 3/16 in
- Overall Length: 2-1/8 in
- Shank Diameter: 3/8 in
- Material: HSS
- Angle: 45 deg
- Country of Origin: US
- Cutter Diameter: 3/4 in
- Cutting Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: ARCH Cutting Tools
- Number of Teeth: 8
- Series: CH126
- Application
- Item Features
For all dovetail work, production and toolroom work
- High speed steel provides good wear resistance
- Commonly used for general purpose applications on both ferrous and nonferrous materials
- Weldon flats flute shape
- Titanium nitride is a multi-purpose coating which increases chip flow in softer materials
- +0.015 in cutting width tolerance
- +/-0.06 in overall length tolerance
- +/- 10 deg cutting angle toleranc
