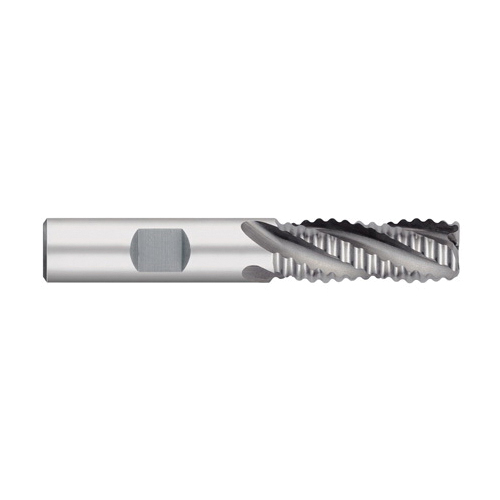

825 5/8 SE 4FL COB ROUGHER END MILL
825 5/8 SE 4FL COB ROUGHER END MILL
TIUSTE63436
TE63436
107.85
/ EA
http://schema.org/OutOfStock
/Product/TIUSTE63436
- Cutter Diameter Decimal Inch: 0.625
- Cutter Diameter Fractional Inch: 5/8
- Cutter Diameter Metric: 15.875
- Type: Coarse Pitch Non-Center Cutting
- Number of Flutes: 4
- Length of Cut Decimal Inch: 1.625
- Length of Cut Fractional Inch: 1-5/8
- Length of Cut Metric: 41.275
- Material: M42 Cobalt
- Overall Length Decimal Inch: 3.75
- Overall Length Fractional Inch: 3-3/4
- Overall Length Metric: 95.25
- Shank Diameter Decimal Inch: 0.625
- Shank Diameter Fractional Inch: 5/8
- Surface Treatment: UNCOATED
- Shank Type: WELDON FLAT
- Helix Angle: 30°
- Series: 825
- Country of Origin: US
- Flute Type: Knuckle
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: TITAN USA
- Application
- Item Features
Roughing Applications
- +/-0.005 in cutter diameter tolerance
- -0.0005 in shank diameter tolerance
