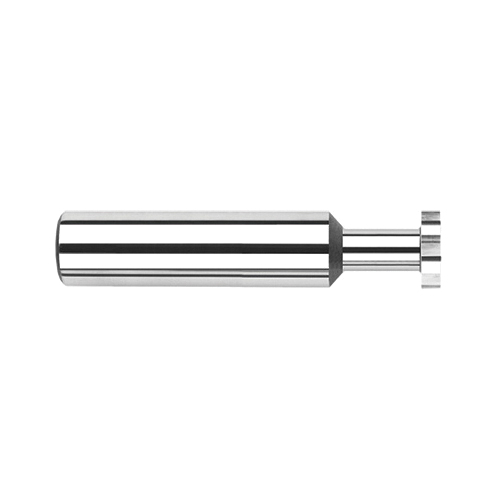

1/4" x .046"W 6FL CARB KEYSEAT CUTTER

1/4" x .046"W 6FL CARB KEYSEAT CUTTER

HATL23516 23516
73.80 / EA
http://schema.org/OutOfStock
1/4 x.046 CARB SNAP RING
  • Type: Imperial
  • Cutter Diameter Decimal Inch: 0.25
  • Cutter Diameter Fractional Inch: 1/4
  • Cutter Diameter Metric: 6.35
  • Cutting Width: 0.046 in, 0.046in
  • Material: Solid Carbide
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Shank Diameter Decimal Inch: 0.25
  • Shank Diameter Fractional Inch: 1/4
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Surface Treatment: UNCOATED
QTY
Add to List
  • Application
  • Item Features
  • Standards
For milling retaining/snap ring grooves
  • Designed to mill proper slot widths for common retaining ring sizes
  • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
  • Both sides of cutter are dished for clearance
ANSI Specified
