1/8" DIA 2FL CARBIDE DOWNCUT END MILL

1/8" DIA 2FL CARBIDE DOWNCUT END MILL

HATL999908 999908
54.80 / EA
http://schema.org/OutOfStock

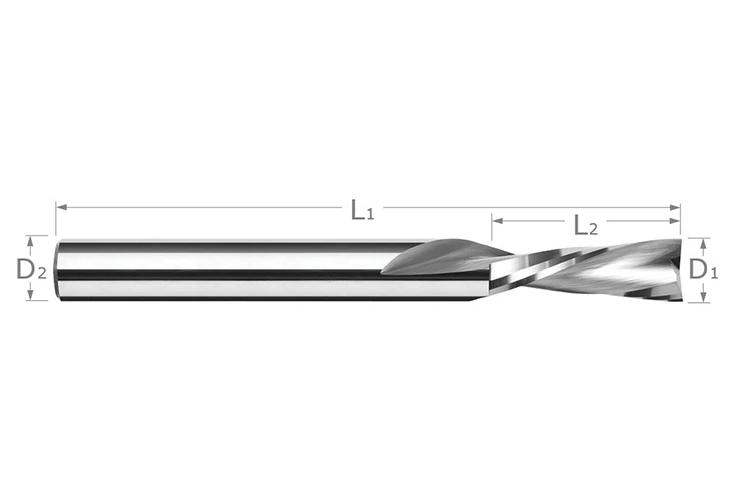

1/8" DIA 2FL CARBIDE DOWNCUT END MILL
  • Type: Slow Helix Downcut
  • Cutter Diameter Decimal Inch: 0.125
  • Cutter Diameter Fractional Inch: 1/8
  • Cutter Diameter Metric: 3.175
  • Number of Flutes: 2
  • Length of Cut Decimal Inch: 0.625
  • Length of Cut Fractional Inch: 5/8
  • Length of Cut Metric: 15.875
  • Overall Length Decimal Inch: 2
  • Overall Length Fractional Inch: 2
  • Overall Length Metric: 50.8
  • Material: Solid Carbide
  • Surface Treatment: Un, UNCOATED
  • Helix Angle: 20 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Downcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Multiple: (5x)
  • Manufacturer Name: Harvey Tool
  • System of Measurement: Imperial
QTY
Add to List
  • Item Features
  • Standards
  • Prevents fraying and chip out of top of workpiece
  • Prevents lifting on vacuum tables
  • 2 Left hand spiral, right hand cut flutes
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 Flute design improves rigidity for better accuracy, less deflection and longer tool life
  • Applicable Materials are Aluminum, Wood, Composites
  • Profile Square
