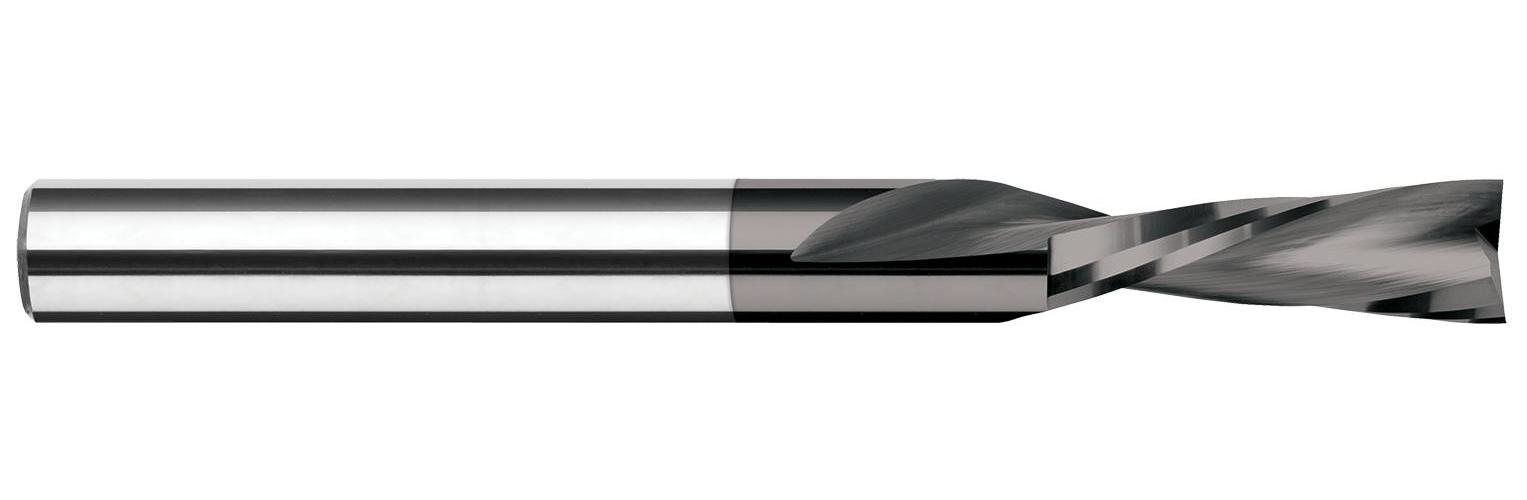

.020DIAx.060LOC 2FL DIAM PLAS END MILL
.020DIAx.060LOC 2FL DIAM PLAS END MILL
HATL998520-C4
998520-C4
74.57
/ EA
http://schema.org/OutOfStock
/Product/HATL998520-C4
- Type: Slow Helix Downcut
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.5, 0.508
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.06
- Length of Cut Metric: 1.524
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: Amorphous Diamond, C4
- Helix Angle: 20 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Downcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (3x)
- Manufacturer Name: Harvey Tool
- Item Features
- Prevents fraying and chip out of top of workpiece
- Prevents lifting on vacuum tables
- 2 Left hand spiral, right hand cut flutes
- High rake, high relief design with large flute valley maximizes chip removal and performance
- 2 Flute design improves rigidity for better accuracy, less deflection and longer tool life
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Composites
- Profile Square
