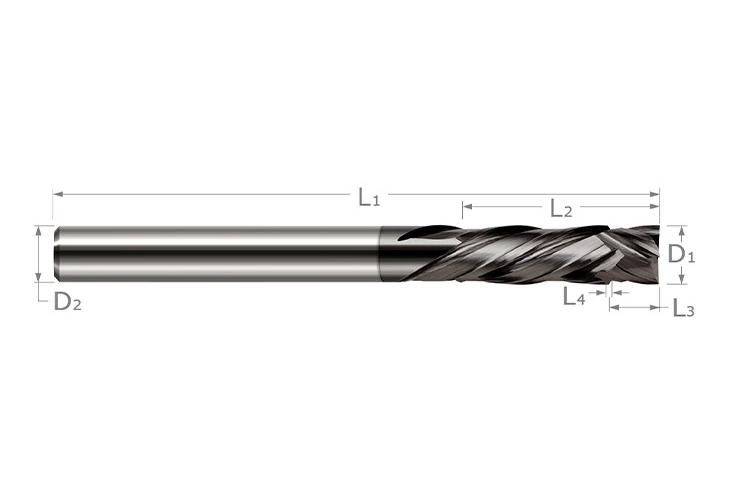

.031 D COMPRESSION SPIRAL, 2FL
.031 D COMPRESSION SPIRAL, 2FL
HATL994331
994331
71.80
/ EA
http://schema.org/OutOfStock
/Product/HATL994331
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.0312
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.792
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.093, 0.09375
- Length of Cut Fractional Inch: 3/32
- Length of Cut Metric: 2.362, 2.381
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- End to Center: 0.0312in
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Split Length: 0.006in
- Item Features
- Standards
- Counteracting flute geometries compress material inwardly to avoid burrs, tear out, and delamination
- Produces enhanced edge finish on top and bottom of workpiece
- Offered in two diamond coatings for increased tool life in a variety of abrasive composite materials
- 2, 4 and 6 flute configurations for rough and finish machining
- Applicable Materials are Non-Ferrous Metal, Wood, Composites, Graphite
- Overlap Length 0.0060 in
- Profile Square
