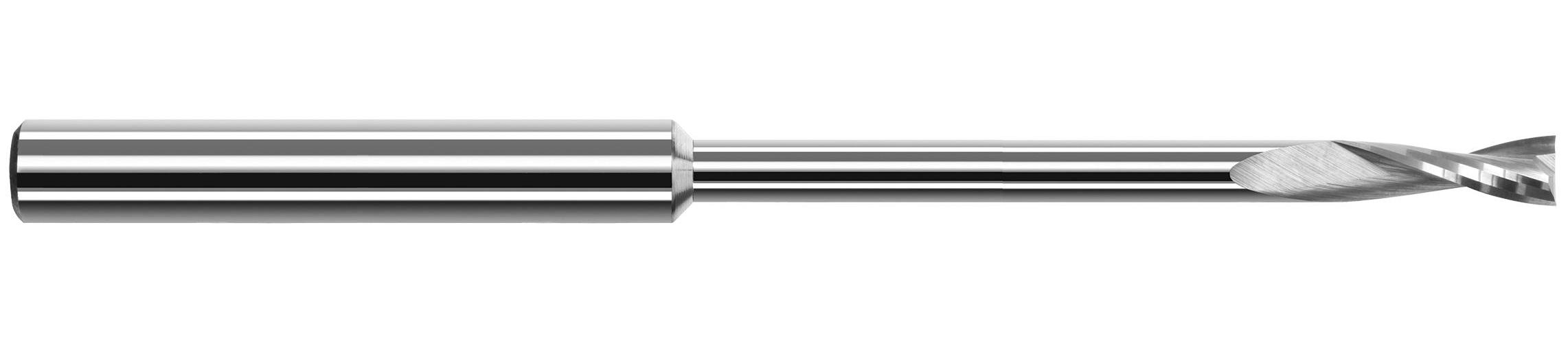

.020 12x REACH PLASTIC CUTTING END MILL
.020 12x REACH PLASTIC CUTTING END MILL
HATL994120
994120
74.60
/ EA
http://schema.org/OutOfStock
/Product/HATL994120
- Type: Center Cut Long Reach
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.06
- Length of Cut Metric: 1.524
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 20 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0187in
- Overall Reach: 0.25in
- Reach Multiple: 12X
- Item Features
- Standards
- High rake, high relief design with large flute valley maximizes chip removal and performance
- Center cutting design improves plunging and ramping
- Reduced neck diameter to avoid heeling
- Applicable Materials are Aluminum, Wood, Composites
- Overall Reach 0.2500 in (1/4)
- Reach Multiple (12x)
- Profile Square
