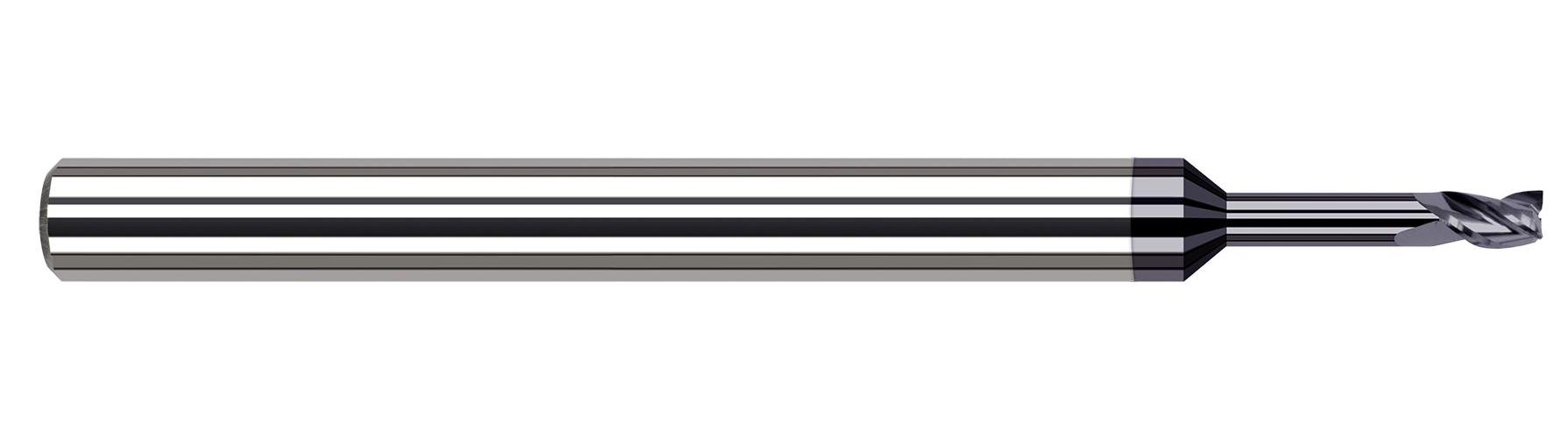

.015 D SQ V-HELIX EX, 5x RCH,
.015 D SQ V-HELIX EX, 5x RCH,
HATL985315-C6
985315-C6
77.40
/ EA
http://schema.org/OutOfStock
/Product/HATL985315-C6
- Type: Center Cut Stub Length Variable Helix
- Cutter Diameter Decimal Inch: 0.015
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.381
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.023
- Length of Cut Metric: 0.584
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 34 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0142in
- Overall Reach: 0.078in
- Reach Multiple: 5X
- Application
- Item Features
Suitable for steels up to 45Rc
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 34) reduces chatter and harmonics and increases material removal rates
- Latest generation coating offers superior hardness and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Overall Reach 0.0780 in (5/64)
- Reach Multiple (5x)
- Profile Square
