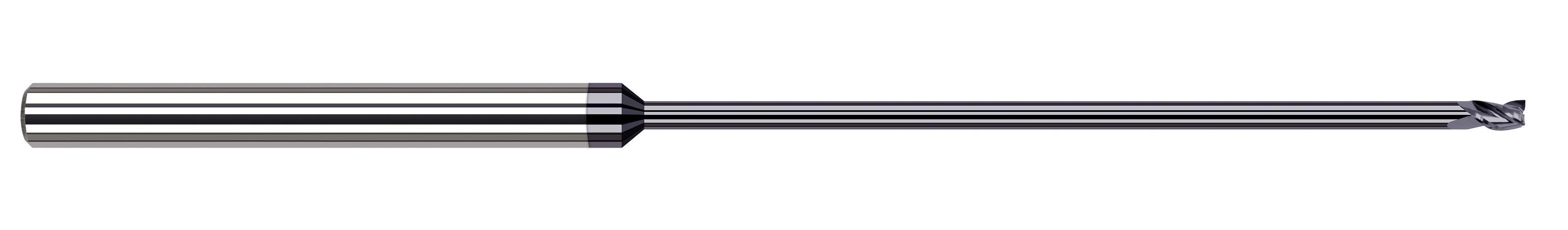

.020 3FL CARB 1/8SHK .030LOC END MILL
.020 3FL CARB 1/8SHK .030LOC END MILL
HATL972020-C3
972020-C3
106.78
/ EA
http://schema.org/OutOfStock
/Product/HATL972020-C3
- Type: Center Cut Stub Length
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.03
- Length of Cut Metric: 0.762
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.019in
- Overall Reach: 0.6in
- Reach Multiple: 30X
- Item Features
- Standards
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.6000 in
- Reach Multiple (30x)
- Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
