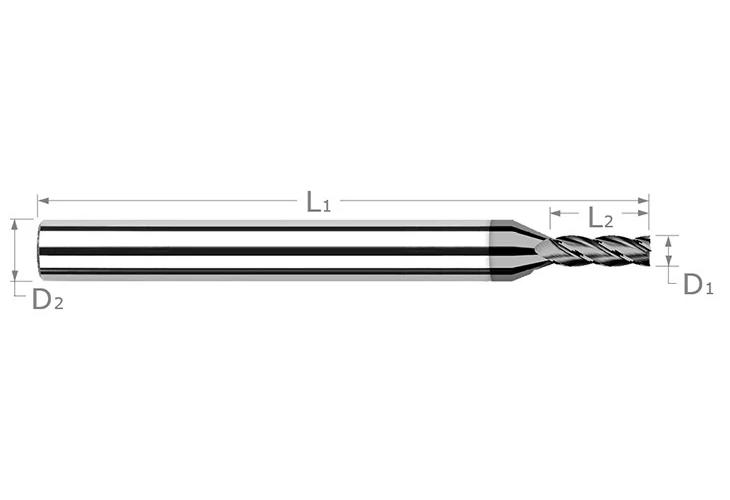

.015 CVD 1.5x LOC SQ END MILL

.015 CVD 1.5x LOC SQ END MILL

HATL962715 962715
116.50 / EA
http://schema.org/OutOfStock
.015 CVD 1.5x LOC SQ END MILL
  • Type: Center Cut
  • Cutter Diameter Decimal Inch: 0.015
  • Cutter Diameter Fractional Inch: 1/64
  • Cutter Diameter Metric: 0.381
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.023
  • Length of Cut Metric: 0.584
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: C5, CVD Diamond
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
  • Standards
Ideal for machining graphite and composites, green carbide and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • Applicable Materials are Composites, Graphite
  • Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
